P005 single-tone horn
- Make
- Fiat
- Model
- Ducato Factory Service Manual
- Year
- 2002–2006
- Section
- Various consumers › P005 single-tone horn
Connectors and pin-outsP005 single-tone horn

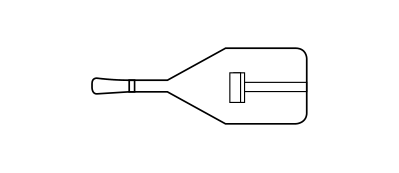

P005 SINGLE-TONE HORN
P005A – Front
| Wiring | Colour |
|---|---|
| See 12 FRONT |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1,5 | B | See B001C JUNCTION UNIT (FRONT) | 27 | |
P005B – Front
| Wiring | Colour |
|---|---|
| See 12 FRONT |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1,5 | N | See C010 LEFT FRONT EARTH | 21 | |
