O040 left seat heater
- Make
- Fiat
- Model
- Ducato Factory Service Manual
- Year
- 2002–2006
- Section
- Resistances and dimmers › O040 left seat heater
Connectors and pin-outsO040 left seat heater

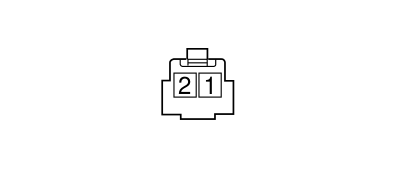

O040 LEFT SEAT HEATER
| Wiring | Colour |
|---|---|
| See 36 LEFT SEAT | BIANCO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1 | Z | See D163 OPTIONAL DASHBOARD/HEATER PAD COUPLING | 1 | |
| 2 | 1 | N | See D163 OPTIONAL DASHBOARD/HEATER PAD COUPLING | 2 | |
