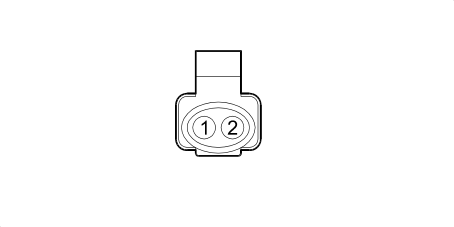

O020 Diesel heating resistance

2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	N		See C010 LEFT FRONT EARTH	19
2	2,5	R		See D004A FRONT/ENGINE COUPLING (FRONT)	A03

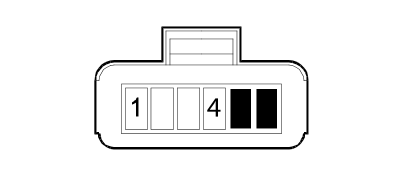

O020A – Front

2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V · Green filter

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	HV		See D004A FRONT/ENGINE COUPLING (FRONT)	A04
2	0,5	NB		See D004A FRONT/ENGINE COUPLING (FRONT)	A05
3	2,5	R		See D004A FRONT/ENGINE COUPLING (FRONT)	A03
4	2,5	N		See C010 LEFT FRONT EARTH	19

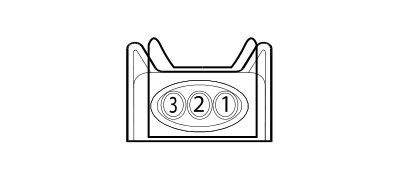

O020B – Front

2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V · Green filter

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	BV		See D001A FRONT/DASHBOARD COUPLING (FRONT)	D08
2	0,5	N		See C010 LEFT FRONT EARTH	12
3	0,75	AN		See D004A FRONT/ENGINE COUPLING (FRONT)	A06
