Fiat
Ducato Factory Service Manual (2002-2006)
Connectors and pin-outs
Earths
C010 left front earth
22 · General
C010 left front earth
Make
Fiat
Model
Ducato Factory Service Manual
Year
2002–2006
Section
Earths › C010 left front earth
Connectors and pin-outs C010 left front earth

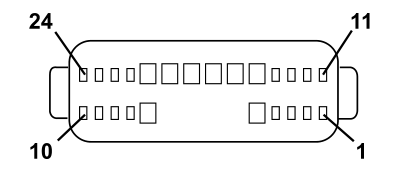

C010 LEFT FRONT EARTH
2.8 JTD 8V · Automatic Transmission
Pin Cable Destination Sec. Colour Node Connect. Pin 1 0,5 N X See F010 LEFT HEADLAMP 7 See F011 RIGHT HEADLAMP 7 See D001A FRONT/DASHBOARD COUPLING (FRONT) D02 2 0,75 NZ See F020 LEFT SIDE REPEATER 2 4 0,75 NZ See F021 RIGHT SIDE REPEATER 2 5 2,5 N See F011 RIGHT HEADLAMP 1 6 2,5 N See F010 LEFT HEADLAMP 1 7 0,35 NZ See K025 BRAKE FLUID LEVEL SENSOR (SWITCH) 2 8 1,5 N See N025 HEADLAMP WASHER PUMP MOTOR 1 9 0,5 N See K026 Engine coolant level sensor 1 10 1 N See M030A (FRONT) 9 11 0,5 N See I010 BONNET RELEASE SWITCH 2 12 0,5 N See K031 WATER IN DIESEL FILTER SENSOR 1 13 1 N See N020 ELECTRIC WINDSCREEN WASHER PUMP MOTOR 2 15 1 N See F016 RIGHT FOG LAMP 2 16 1 N See F015 LEFT FOG LAMP 2 17 1,5 N X See I081 MULTIFUNCTION SWITCH ON GEARBOX K See H037 GEAR CONTROLS 3 See M055 AUTOMATIC TRANSMISSION CONTROL UNIT 6 See M055 AUTOMATIC TRANSMISSION CONTROL UNIT 28 See M055 AUTOMATIC TRANSMISSION CONTROL UNIT 34 18 2,5 N See N015 WINDSCREEN WIPER MOTOR 1 19 2,5 N See O020 Diesel heating resistance 1 20 2 NZ See I050 INERTIA SWITCH 1 21 1,5 N See P005B SINGLE-TONE HORN (FRONT) 1 24 0,5 N See B001C JUNCTION UNIT (FRONT) 26
2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Pin Cable Destination Sec. Colour Node Connect. Pin 1 0,5 N X See F010 LEFT HEADLAMP 7 See F011 RIGHT HEADLAMP 7 See D001A FRONT/DASHBOARD COUPLING (FRONT) D02 2 0,75 NZ See F020 LEFT SIDE REPEATER 2 4 0,75 NZ See F021 RIGHT SIDE REPEATER 2 5 2,5 N See F011 RIGHT HEADLAMP 1 6 2,5 N See F010 LEFT HEADLAMP 1 7 0,35 NZ See K025 BRAKE FLUID LEVEL SENSOR (SWITCH) 2 8 1,5 N See N025 HEADLAMP WASHER PUMP MOTOR 1 9 0,5 N See K026 Engine coolant level sensor 1 10 1 N See M030A (FRONT) 9 11 0,5 N See I010 BONNET RELEASE SWITCH 2 12 0,5 N See K031 WATER IN DIESEL FILTER SENSOR 1 13 1 N See N020 ELECTRIC WINDSCREEN WASHER PUMP MOTOR 2 15 1 N See F016 RIGHT FOG LAMP 2 16 1 N See F015 LEFT FOG LAMP 2 17 1,5 N X See I081 MULTIFUNCTION SWITCH ON GEARBOX K See H037 GEAR CONTROLS 3 See M055 AUTOMATIC TRANSMISSION CONTROL UNIT 6 See M055 AUTOMATIC TRANSMISSION CONTROL UNIT 28 See M055 AUTOMATIC TRANSMISSION CONTROL UNIT 34 18 2,5 N See N015 WINDSCREEN WIPER MOTOR 1 19 2,5 N See O020 Diesel heating resistance 1 20 2 NZ See I050 INERTIA SWITCH 1 21 1,5 N See P005B SINGLE-TONE HORN (FRONT) 1 22 0,35 NS See K010 4 STAGE PRESSURE SWITCH 6 23 0,5 NZ See I031 CLUTCH PEDAL SWITCH 1 24 0,5 N See B001C JUNCTION UNIT (FRONT) 26
2.0 16V
Pin Cable Destination Sec. Colour Node Connect. Pin 1 0,5 N X See F010 LEFT HEADLAMP 7 See F011 RIGHT HEADLAMP 7 See D001A FRONT/DASHBOARD COUPLING (FRONT) D02 2 0,75 NZ See F020 LEFT SIDE REPEATER 2 4 0,75 NZ See F021 RIGHT SIDE REPEATER 2 5 2,5 N See F011 RIGHT HEADLAMP 1 6 2,5 N See F010 LEFT HEADLAMP 1 7 0,35 NZ See K025 BRAKE FLUID LEVEL SENSOR (SWITCH) 2 8 1,5 N See N025 HEADLAMP WASHER PUMP MOTOR 1 9 0,5 N See K026 Engine coolant level sensor 1 10 1 N See M030A (FRONT) 9 11 0,5 N See I010 BONNET RELEASE SWITCH 2 13 1 N See N020 ELECTRIC WINDSCREEN WASHER PUMP MOTOR 2 15 1 N See F016 RIGHT FOG LAMP 2 16 1 N See F015 LEFT FOG LAMP 2 18 2,5 N See N015 WINDSCREEN WIPER MOTOR 1 20 2 NZ See D145 FRONT/CILC (FUEL LEVEL GAUGE CIRCUIT) COUPLING 3 21 1,5 N See P005B SINGLE-TONE HORN (FRONT) 1 24 0,5 N See B001C JUNCTION UNIT (FRONT) 26
22 General
