I081 multifunction switch on gearbox

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Switches › I081 multifunction switch on gearbox

Connectors and pin-outsI081 multifunction switch on gearbox

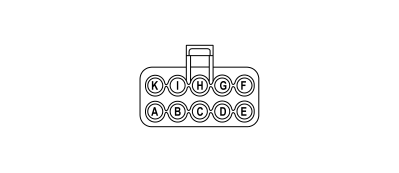

I081 MULTIFUNCTION SWITCH ON GEARBOX

2.8 JTD 8V · Automatic Transmission, Climate control

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A	0,5	BG		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	36
B	0,5	SN		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	8
C	0,5	BV		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	37
D	0,5	SB		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	9
E	1	RV	X	See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	26
				See B001C JUNCTION UNIT (FRONT)	32
				See H037 GEAR CONTROLS	2
				See L057 Ignition switch electro-magnet	2
G	1	BR		See D001A FRONT/DASHBOARD COUPLING (FRONT)	A06
H	1	AV		See D001A FRONT/DASHBOARD COUPLING (FRONT)	D04
I	0,5	ZN		See B001C JUNCTION UNIT (FRONT)	17
K	0,5	N	X	See H037 GEAR CONTROLS	3
				See C010 LEFT FRONT EARTH	17
				See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	6
				See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	28
				See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	34
