I020 reversing lights switch
- Make
- Fiat
- Model
- Ducato Factory Service Manual
- Year
- 2002–2006
- Section
- Switches › I020 reversing lights switch
Connectors and pin-outsI020 reversing lights switch

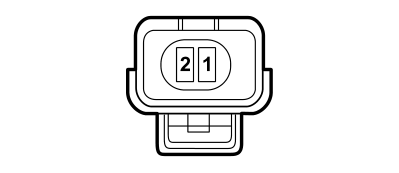

I020 REVERSING LIGHTS SWITCH
| Wiring | Colour |
|---|---|
| See 119 REVERSING SWITCH BRIDGE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1,5 | A | See D187 FRONT/REVERSING SWITCH BRIDGE COUPLING | 1 | |
| 2 | 1,5 | BR | See D187 FRONT/REVERSING SWITCH BRIDGE COUPLING | 2 | |
