Connectors and pin-outsI030 brake pedal switch

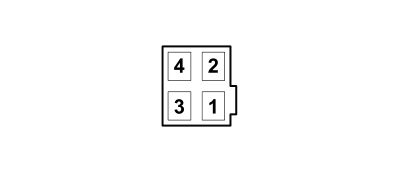

I030 BRAKE PEDAL SWITCH
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | HN | See D001B FRONT/DASHBOARD COUPLING (FRONT) | 1 | |
| 2 | 1 | RN | See D097B SHORT CIRCUITING COUPLING (DASHBOARD) | 1 | |
| 3 | 0,5 | L | See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD) | 1 | |
| 4 | 1 | LV | See B002C JUNCTION UNIT UNDER DASHBOARD (DASHBOARD) | 7 | |
