D001 FRONT/DASHBOARD COUPLING

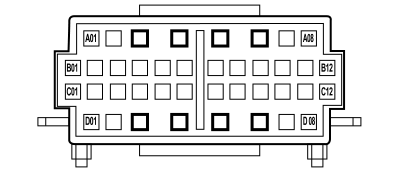

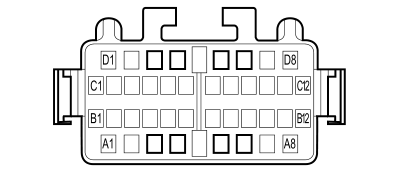

D001A – Front

2.0 JTD 8V

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A01	0,5	HM		See D007A ALTERNATOR COUPLING (FRONT)	1
A02	0,75	GN		See F010 LEFT HEADLAMP	11
A03	0,75	GR		See F011 RIGHT HEADLAMP	11
A04	0,35	MV		See B001C JUNCTION UNIT (FRONT)	23
A05	0,35	AV		See B001C JUNCTION UNIT (FRONT)	12
A06	1	BR		See I081 MULTIFUNCTION SWITCH ON GEARBOX	G
A07	0,75	AR		See B001C JUNCTION UNIT (FRONT)	11
A08	0,5	HN		See N015 WINDSCREEN WIPER MOTOR	6
B01	0,5	RN		See D004A FRONT/ENGINE COUPLING (FRONT)	B10
B02	0,75	AN		See F011 RIGHT HEADLAMP	10
B03	0,75	AN		See F021 RIGHT SIDE REPEATER	1
B04	0,75	SB		See F010 LEFT HEADLAMP	10
B05	0,75	SB		See F020 LEFT SIDE REPEATER	1
B06	0,5	HV		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	27
B07	0,35	HL		See M020A CODE CONTROL UNIT (FRONT)	2
B08	0,5	HG	X	See D004A FRONT/ENGINE COUPLING (FRONT)	D06
				See D007A ALTERNATOR COUPLING (FRONT)	2
B09	0,35	BH		See D004A FRONT/ENGINE COUPLING (FRONT)	D02
B10	0,35	BM		See D004A FRONT/ENGINE COUPLING (FRONT)	D03
B11	0,5	GV		See N015 WINDSCREEN WIPER MOTOR	2
B12	0,5	H		See N015 WINDSCREEN WIPER MOTOR	5
C01	0,5	S		See K020 LEFT BRAKE PAD WEAR SENSOR (SWITCH)	1
C02	0,35	BN		See K025 BRAKE FLUID LEVEL SENSOR (SWITCH)	1
C03	0,35	HR		See D145 FRONT/CILC (FUEL LEVEL GAUGE CIRCUIT) COUPLING	1
C04	0,35	BG	X	See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	88
				See D004A FRONT/ENGINE COUPLING (FRONT)	D08
C05	0,35	A3		See D004A FRONT/ENGINE COUPLING (FRONT)	B08
C06	0,35	BL		See D004A FRONT/ENGINE COUPLING (FRONT)	A07
C07	0,35	NR		See D004A FRONT/ENGINE COUPLING (FRONT)	C08
C08	0,35	NV		See D004A FRONT/ENGINE COUPLING (FRONT)	A01
C09	0,35	BZ		See D145 FRONT/CILC (FUEL LEVEL GAUGE CIRCUIT) COUPLING	2
C10	0,35	NZ		See D004A FRONT/ENGINE COUPLING (FRONT)	D01
C11	0,5	V		See M020A CODE CONTROL UNIT (FRONT)	5
C12	0,35	sz		See B001C JUNCTION UNIT (FRONT)	21
D01	0,5	VB	X	See F010 LEFT HEADLAMP	8
				See F011 RIGHT HEADLAMP	8
D02	0,5	N	X	See C010 LEFT FRONT EARTH	1
				See F010 LEFT HEADLAMP	7
				See F011 RIGHT HEADLAMP	7
D03	0,5	HB	X	See B001C JUNCTION UNIT (FRONT)	24
				See F011 RIGHT HEADLAMP	9
				See F010 LEFT HEADLAMP	9
D04	1	AV		See I081 MULTIFUNCTION SWITCH ON GEARBOX	H
D06	1	AG		See N020 ELECTRIC WINDSCREEN WASHER PUMP MOTOR	1
D05	0,5	LB		See K026 Engine coolant level sensor	2
D08	0,5	BV		See K031 WATER IN DIESEL FILTER SENSOR	2

2.8 JTD 8V · Automatic Transmission

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A01	0,5	HM		See D007A ALTERNATOR COUPLING (FRONT)	1
A02	0,75	GN		See F010 LEFT HEADLAMP	11
A03	0,75	GR		See F011 RIGHT HEADLAMP	11
A04	0,35	MV		See B001C JUNCTION UNIT (FRONT)	23
A05	0,35	AV		See B001C JUNCTION UNIT (FRONT)	12
A06	1	BR		See I081 MULTIFUNCTION SWITCH ON GEARBOX	G
A07	0,75	AR		See B001C JUNCTION UNIT (FRONT)	11
A08	0,5	HN		See N015 WINDSCREEN WIPER MOTOR	6
B01	0,5	RN		See D004A FRONT/ENGINE COUPLING (FRONT)	B10
B02	0,75	AN		See F011 RIGHT HEADLAMP	10
B03	0,75	AN		See F021 RIGHT SIDE REPEATER	1
B04	0,75	SB		See F010 LEFT HEADLAMP	10
B05	0,75	SB		See F020 LEFT SIDE REPEATER	1
B06	0,5	HV		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	27
B07	0,35	HL		See M020A CODE CONTROL UNIT (FRONT)	2
B08	0,5	HG	X	See D004A FRONT/ENGINE COUPLING (FRONT)	D06
				See D007A ALTERNATOR COUPLING (FRONT)	2
B09	0,35	BH		See D004A FRONT/ENGINE COUPLING (FRONT)	D02
B10	0,35	BM		See D004A FRONT/ENGINE COUPLING (FRONT)	D03
B11	0,5	GV		See N015 WINDSCREEN WIPER MOTOR	2
B12	0,5	H		See N015 WINDSCREEN WIPER MOTOR	5
C01	0,5	S		See K020 LEFT BRAKE PAD WEAR SENSOR (SWITCH)	1
C02	0,35	BN		See K025 BRAKE FLUID LEVEL SENSOR (SWITCH)	1
C03	0,35	HR		See D145 FRONT/CILC (FUEL LEVEL GAUGE CIRCUIT) COUPLING	1
C04	0,35	BG	X	See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	88
				See D004A FRONT/ENGINE COUPLING (FRONT)	D08
C05	0,35	A3		See D004A FRONT/ENGINE COUPLING (FRONT)	B08
C06	0,35	BL		See D004A FRONT/ENGINE COUPLING (FRONT)	A07
C07	0,35	NR		See D004A FRONT/ENGINE COUPLING (FRONT)	C08
C08	0,35	NV		See D004A FRONT/ENGINE COUPLING (FRONT)	A01
C09	0,35	BZ		See D145 FRONT/CILC (FUEL LEVEL GAUGE CIRCUIT) COUPLING	2
C10	0,35	NZ		See D004A FRONT/ENGINE COUPLING (FRONT)	D01
C11	0,5	V		See M020A CODE CONTROL UNIT (FRONT)	5
C12	0,35	sz		See B001C JUNCTION UNIT (FRONT)	21
D01	0,5	VB	X	See F010 LEFT HEADLAMP	8
				See F011 RIGHT HEADLAMP	8
D02	0,5	N	X	See C010 LEFT FRONT EARTH	1
				See F010 LEFT HEADLAMP	7
				See F011 RIGHT HEADLAMP	7
D03	0,5	HB	X	See B001C JUNCTION UNIT (FRONT)	24
				See F011 RIGHT HEADLAMP	9
				See F010 LEFT HEADLAMP	9
D04	1	AV		See I081 MULTIFUNCTION SWITCH ON GEARBOX	H
D06	1	AG		See N020 ELECTRIC WINDSCREEN WASHER PUMP MOTOR	1
D05	0,5	LB		See K026 Engine coolant level sensor	2
D08	0,5	BV		See K031 WATER IN DIESEL FILTER SENSOR	2

2.0 JTD 8V · Green filter

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A01	0,5	HM		See D004 FRONT/ENGINE COUPLING	B11
A02	0,75	GN		See F010 LEFT HEADLAMP	11
A03	0,75	GR		See F011 RIGHT HEADLAMP	11
A04	0,35	MV		See B001C JUNCTION UNIT (FRONT)	23
A05	0,35	AV		See B001C JUNCTION UNIT (FRONT)	12
A06	1	AR		See D187 FRONT/REVERSING SWITCH BRIDGE COUPLING	2
A07	0,75	AR		See B001C JUNCTION UNIT (FRONT)	11
A08	0,5	HN		See N015 WINDSCREEN WIPER MOTOR	6
B01	0,5	RN		See D004A FRONT/ENGINE COUPLING (FRONT)	B10
B02	0,75	AN		See F011 RIGHT HEADLAMP	10
B03	0,75	AN		See F021 RIGHT SIDE REPEATER	1
B04	0,75	SB		See F010 LEFT HEADLAMP	10
B05	0,75	SB		See F020 LEFT SIDE REPEATER	1
B06	0,5	HV		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	27
B07	0,35	HL		See M020A CODE CONTROL UNIT (FRONT)	2
B08	0,5	HG	X	See D004A FRONT/ENGINE COUPLING (FRONT)	D06
B09	0,35	BH		See D004A FRONT/ENGINE COUPLING (FRONT)	D02
B10	0,35	BM		See D004A FRONT/ENGINE COUPLING (FRONT)	D03
B11	0,5	GV		See N015 WINDSCREEN WIPER MOTOR	2
B12	0,5	H		See N015 WINDSCREEN WIPER MOTOR	5
C01	0,5	S		See K020 LEFT BRAKE PAD WEAR SENSOR (SWITCH)	1
C02	0,35	BN		See K025 BRAKE FLUID LEVEL SENSOR (SWITCH)	1
C03	0,35	HR		See D145 FRONT/CILC (FUEL LEVEL GAUGE CIRCUIT) COUPLING	1
C04	0,35	BG	X	See D004A FRONT/ENGINE COUPLING (FRONT)	D07
C05	0,35	A3		See D004A FRONT/ENGINE COUPLING (FRONT)	B08
C06	0,35	BL		See D004A FRONT/ENGINE COUPLING (FRONT)	A07
C07	0,35	NR		See D004A FRONT/ENGINE COUPLING (FRONT)	C08
C08	0,35	NV		See D004A FRONT/ENGINE COUPLING (FRONT)	A01
C09	0,35	BZ		See D145 FRONT/CILC (FUEL LEVEL GAUGE CIRCUIT) COUPLING	2
C10	0,35	NZ		See D004A FRONT/ENGINE COUPLING (FRONT)	D01
C11	0,5	V		See M020A CODE CONTROL UNIT (FRONT)	5
C12	0,35	sz		See B001C JUNCTION UNIT (FRONT)	21
D01	0,5	VB	X	See F010 LEFT HEADLAMP	8
				See F011 RIGHT HEADLAMP	8
D02	0,5	N	X	See C010 LEFT FRONT EARTH	1
				See F010 LEFT HEADLAMP	7
				See F011 RIGHT HEADLAMP	7
D03	0,5	HB	X	See B001C JUNCTION UNIT (FRONT)	24
				See F011 RIGHT HEADLAMP	9
				See F010 LEFT HEADLAMP	9
D04	1	AV		See I081 MULTIFUNCTION SWITCH ON GEARBOX	H
D06	1	AG		See N020 ELECTRIC WINDSCREEN WASHER PUMP MOTOR	1
D05	0,5	LB		See K026 Engine coolant level sensor	2
D08	0,5	BV		See O020B Diesel heating resistance (FRONT)	1

2.3 JTD 16V, 2.8 JTD 8V

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A01	0,5	HM		See D007 ALTERNATOR COUPLING	1
A02	0,75	GN		See F010 LEFT HEADLAMP	11
A03	0,75	GR		See F011 RIGHT HEADLAMP	11
A04	0,35	MV		See B001C JUNCTION UNIT (FRONT)	23
A05	0,35	AV		See B001C JUNCTION UNIT (FRONT)	12
A06	1	BR		See I081 MULTIFUNCTION SWITCH ON GEARBOX	G
A07	0,75	AR		See B001C JUNCTION UNIT (FRONT)	11
A08	0,5	HN		See N015 WINDSCREEN WIPER MOTOR	6
B01	0,5	RN		See D004A FRONT/ENGINE COUPLING (FRONT)	B10
B02	0,75	AN		See F011 RIGHT HEADLAMP	10
B03	0,75	AN		See F021 RIGHT SIDE REPEATER	1
B04	0,75	SB		See F010 LEFT HEADLAMP	10
B05	0,75	SB		See F020 LEFT SIDE REPEATER	1
B06	0,5	HV		See D004A FRONT/ENGINE COUPLING (FRONT)	B07
B07	0,35	HL		See M020A CODE CONTROL UNIT (FRONT)	2
B08	0,5	HG	X	See D007 ALTERNATOR COUPLING	2
				See D004A FRONT/ENGINE COUPLING (FRONT)	D06
B09	0,35	BH		See D004A FRONT/ENGINE COUPLING (FRONT)	D02
B10	0,35	BM		See D004A FRONT/ENGINE COUPLING (FRONT)	D03
B11	0,5	GV		See N015 WINDSCREEN WIPER MOTOR	2
B12	0,5	H		See N015 WINDSCREEN WIPER MOTOR	5
C01	0,5	MN		See K020 LEFT BRAKE PAD WEAR SENSOR (SWITCH)	1
C02	0,35	BN		See K025 BRAKE FLUID LEVEL SENSOR (SWITCH)	1
C03	0,35	HR		See D145 FRONT/CILC (FUEL LEVEL GAUGE CIRCUIT) COUPLING	1
C04	0,35	BG	X	See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	88
				See D004A FRONT/ENGINE COUPLING (FRONT)	D08
C05	0,35	AB		See D004A FRONT/ENGINE COUPLING (FRONT)	B08
C06	0,35	BL		See D004A FRONT/ENGINE COUPLING (FRONT)	A07
C07	0,35	NR		See D004A FRONT/ENGINE COUPLING (FRONT)	C08
C08	0,35	NV		See D004A FRONT/ENGINE COUPLING (FRONT)	A01
C09	0,35	BZ		See D145 FRONT/CILC (FUEL LEVEL GAUGE CIRCUIT) COUPLING	2
C10	0,35	NZ		See D004A FRONT/ENGINE COUPLING (FRONT)	D01
C11	0,5	V		See M020A CODE CONTROL UNIT (FRONT)	5
C12	0,35	SZ		See B001C JUNCTION UNIT (FRONT)	21
D01	0,5	VB	X	See F011 RIGHT HEADLAMP	8
				See F010 LEFT HEADLAMP	8
D02	0,5	N	X	See C010 LEFT FRONT EARTH	1
				See F011 RIGHT HEADLAMP	7
				See F010 LEFT HEADLAMP	7
D03	0,5	HB	X	See F011 RIGHT HEADLAMP	9
				See B001C JUNCTION UNIT (FRONT)	24
				See F010 LEFT HEADLAMP	9
D04	1	AV		See I081 MULTIFUNCTION SWITCH ON GEARBOX	H
D06	1	AG		See N020 ELECTRIC WINDSCREEN WASHER PUMP MOTOR	1
D05	0,5	LB		See K026 Engine coolant level sensor	2
D08	0,5	BV		See K031 WATER IN DIESEL FILTER SENSOR	2

2.3 JTD 16V, 2.8 JTD 8V · Green filter

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A01	0,5	HM		See D007 ALTERNATOR COUPLING	1
A02	0,75	GN		See F010 LEFT HEADLAMP	11
A03	0,75	GR		See F011 RIGHT HEADLAMP	11
A04	0,35	MV		See B001C JUNCTION UNIT (FRONT)	23
A05	0,35	AV		See B001C JUNCTION UNIT (FRONT)	12
A06	1	BR		See I081 MULTIFUNCTION SWITCH ON GEARBOX	G
A07	0,75	AR		See B001C JUNCTION UNIT (FRONT)	11
A08	0,5	HN		See N015 WINDSCREEN WIPER MOTOR	6
B01	0,5	RN		See D004A FRONT/ENGINE COUPLING (FRONT)	B10
B02	0,75	AN		See F011 RIGHT HEADLAMP	10
B03	0,75	AN		See F021 RIGHT SIDE REPEATER	1
B04	0,75	SB		See F010 LEFT HEADLAMP	10
B05	0,75	SB		See F020 LEFT SIDE REPEATER	1
B06	0,5	HV		See D004A FRONT/ENGINE COUPLING (FRONT)	B07
B07	0,35	HL		See M020A CODE CONTROL UNIT (FRONT)	2
B08	0,5	HG	X	See D007 ALTERNATOR COUPLING	2
				See D004A FRONT/ENGINE COUPLING (FRONT)	D06
B09	0,35	BH		See D004A FRONT/ENGINE COUPLING (FRONT)	D02
B10	0,35	BM		See D004A FRONT/ENGINE COUPLING (FRONT)	D03
B11	0,5	GV		See N015 WINDSCREEN WIPER MOTOR	2
B12	0,5	H		See N015 WINDSCREEN WIPER MOTOR	5
C01	0,5	MN		See K020 LEFT BRAKE PAD WEAR SENSOR (SWITCH)	1
C02	0,35	BN		See K025 BRAKE FLUID LEVEL SENSOR (SWITCH)	1
C03	0,35	HR		See D145 FRONT/CILC (FUEL LEVEL GAUGE CIRCUIT) COUPLING	1
C04	0,35	BG		See D004A FRONT/ENGINE COUPLING (FRONT)	D08
C06	0,35	BL		See D004A FRONT/ENGINE COUPLING (FRONT)	C08
C07	0,35	NR		See D004A FRONT/ENGINE COUPLING (FRONT)	A01
C08	0,35	NV		See D145 FRONT/CILC (FUEL LEVEL GAUGE CIRCUIT) COUPLING	2
C09	0,35	BZ		See D004A FRONT/ENGINE COUPLING (FRONT)	D01
C10	0,35	NZ		See M020A CODE CONTROL UNIT (FRONT)	5
C11	0,5	V		See B001C JUNCTION UNIT (FRONT)	21
C12	0,35	SZ	X	See F011 RIGHT HEADLAMP	8
D01	0,5	VB		See F010 LEFT HEADLAMP	8
			X	See C010 LEFT FRONT EARTH	1
D02	0,5	N		See F011 RIGHT HEADLAMP	7
				See F010 LEFT HEADLAMP	7
			X	See F011 RIGHT HEADLAMP	9
D03	0,5	HB		See B001C JUNCTION UNIT (FRONT)	24
				See F010 LEFT HEADLAMP	9
				See I081 MULTIFUNCTION SWITCH ON GEARBOX	H
D04	1	AV		See N020 ELECTRIC WINDSCREEN WASHER PUMP MOTOR	1
D06	1	AG		See K026 Engine coolant level sensor	2
D05	0,5	LB		See K031 WATER IN DIESEL FILTER SENSOR	2
D08	0,5	BV		See O020B Diesel heating resistance (FRONT)	1

2.0 16V · Climate control

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A01	0,5	HM		See D007A ALTERNATOR COUPLING (FRONT)	1
A02	0, 75	GN		See F010 LEFT HEADLAMP	11
A03	0,75	GR		See F011 RIGHT HEADLAMP	11
A04	0,35	MV		See B001C JUNCTION UNIT (FRONT)	23
A05	0,35	AV		See B001C JUNCTION UNIT (FRONT)	12
A06	1,5	BR		See D187 FRONT/REVERSING SWITCH BRIDGE COUPLING	2
A07	0,75	AR		See B001C JUNCTION UNIT (FRONT)	11
A08	0,5	HN		See N015 WINDSCREEN WIPER MOTOR	6
B01	0,5	RN		See D004A FRONT/ENGINE COUPLING (FRONT)	B10
B02	0,75	AN		See F011 RIGHT HEADLAMP	10
B03	0,75	AN		See F021 RIGHT SIDE REPEATER	1
B04	0, 75	SB		See F010 LEFT HEADLAMP	10
B05	0, 75	SB		See F020 LEFT SIDE REPEATER	1
B06	0,35	HV		See D004A FRONT/ENGINE COUPLING (FRONT)	B07
B07	0,35	HL		See M020A CODE CONTROL UNIT (FRONT)	2
B08	0,5	HG		See D007A ALTERNATOR COUPLING (FRONT)	2
B09	0,35	BH		See D004A FRONT/ENGINE COUPLING (FRONT)	D02
B10	0,35	BM		See D004A FRONT/ENGINE COUPLING (FRONT)	D03
B11	0,5	GV		See N015 WINDSCREEN WIPER MOTOR	2
B12	0,5	H		See N015 WINDSCREEN WIPER MOTOR	5
C01	0,5	MN		See K020 LEFT BRAKE PAD WEAR SENSOR (SWITCH)	1
C02	0,35	BN		See K025 BRAKE FLUID LEVEL SENSOR (SWITCH)	1
C03	0,35	HR		See D145 FRONT/CILC (FUEL LEVEL GAUGE CIRCUIT) COUPLING	1
C04	0,35	BG		See D004A FRONT/ENGINE COUPLING (FRONT)	D08
C05	0,35	AS		See D004A FRONT/ENGINE COUPLING (FRONT)	B08
C06	0,35	BL		See D004A FRONT/ENGINE COUPLING (FRONT)	A07
C07	0,35	NR		See D004A FRONT/ENGINE COUPLING (FRONT)	C08
C08	0,35	NV		See D004A FRONT/ENGINE COUPLING (FRONT)	A01
C09	0,35	BZ		See D145 FRONT/CILC (FUEL LEVEL GAUGE CIRCUIT) COUPLING	2
C11	0,5	V		See M020A CODE CONTROL UNIT (FRONT)	5
C12	0,35	SZ		See B001C JUNCTION UNIT (FRONT)	21
C19	0,35	NZ		See D004A FRONT/ENGINE COUPLING (FRONT)	D01
D01	0,5	VB	X	See F011 RIGHT HEADLAMP	8
				See F010 LEFT HEADLAMP	8
D02	0,5	N	X	See C010 LEFT FRONT EARTH	1
				See F011 RIGHT HEADLAMP	7
				See F010 LEFT HEADLAMP	7
D03	0,5	HB	X	See F011 RIGHT HEADLAMP	9
				See B001C JUNCTION UNIT (FRONT)	24
				See F010 LEFT HEADLAMP	9
D04	1,5	A		See D187 FRONT/REVERSING SWITCH BRIDGE COUPLING	1
D05	0,5	LB		See K026 Engine coolant level sensor	2
D06	1	AG		See N020 ELECTRIC WINDSCREEN WASHER PUMP MOTOR	1
D07	0,5	Z		See D004A FRONT/ENGINE COUPLING (FRONT)	B11

2.0 16V

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A01	0,5	HM		See D007A ALTERNATOR COUPLING (FRONT)	1
A02	0,75	GN		See F010 LEFT HEADLAMP	11
A03	0,75	GR		See F011 RIGHT HEADLAMP	11
A04	0,35	MV		See B001C JUNCTION UNIT (FRONT)	23
A05	0,35	AV		See B001C JUNCTION UNIT (FRONT)	12
A06	1,5	BR		See D187 FRONT/REVERSING SWITCH BRIDGE COUPLING	2
A07	0,75	AR		See B001C JUNCTION UNIT (FRONT)	11
A08	0,5	HN		See N015 WINDSCREEN WIPER MOTOR	6
B01	0,5	RN		See D004A FRONT/ENGINE COUPLING (FRONT)	B10
B02	0,75	AN		See F011 RIGHT HEADLAMP	10
B03	0,75	AN		See F021 RIGHT SIDE REPEATER	1
B04	0,75	SB		See F010 LEFT HEADLAMP	10
B05	0,75	SB		See F020 LEFT SIDE REPEATER	1
B06	0,35	HV		See D004A FRONT/ENGINE COUPLING (FRONT)	B07
B07	0,35	HL		See M020 CODE CONTROL UNIT	2
B08	0,5	HG		See D007A ALTERNATOR COUPLING (FRONT)	2
B09	0,35	BH		See D004A FRONT/ENGINE COUPLING (FRONT)	D02
B10	0,35	BM		See D004A FRONT/ENGINE COUPLING (FRONT)	D03
B11	0,5	GV		See N015 WINDSCREEN WIPER MOTOR	2
B12	0,5	H		See N015 WINDSCREEN WIPER MOTOR	5
C01	0,5	MN		See K020 LEFT BRAKE PAD WEAR SENSOR (SWITCH)	1
C02	0,35	BN		See K025 BRAKE FLUID LEVEL SENSOR (SWITCH)	1
C03	0,35	HR		See D145 FRONT/CILC (FUEL LEVEL GAUGE CIRCUIT) COUPLING	1
C04	0,35	BG		See D004A FRONT/ENGINE COUPLING (FRONT)	D08
C05	0,35	AS		See D004A FRONT/ENGINE COUPLING (FRONT)	B08
C06	0,35	BL		See D004A FRONT/ENGINE COUPLING (FRONT)	A07
C07	0,35	NR		See D004A FRONT/ENGINE COUPLING (FRONT)	C08
C08	0,35	NV		See D004A FRONT/ENGINE COUPLING (FRONT)	A01
C09	0,35	BZ		See D145 FRONT/CILC (FUEL LEVEL GAUGE CIRCUIT) COUPLING	2
C10	0,35	NZ		See D004A FRONT/ENGINE COUPLING (FRONT)	D01
C11	0,5	V		See M020A CODE CONTROL UNIT (FRONT)	5
C12	0,35	SZ		See B001C JUNCTION UNIT (FRONT)	21
D01	0,5	VB	X	See F011 RIGHT HEADLAMP	8
				See F010 LEFT HEADLAMP	8
D02	0,5	N	X	See C010 LEFT FRONT EARTH	1
				See F011 RIGHT HEADLAMP	7
				See F010 LEFT HEADLAMP	7
D03	0,5	HB	X	See F011 RIGHT HEADLAMP	9
				See B001C JUNCTION UNIT (FRONT)	24
				See F010 LEFT HEADLAMP	9
D04	1,5	A		See D187 FRONT/REVERSING SWITCH BRIDGE COUPLING	1
D05	0,5	LB		See K026 Engine coolant level sensor	2
D06	1	AG		See N020 ELECTRIC WINDSCREEN WASHER PUMP MOTOR	1
D07	0,5	Z		See D004A FRONT/ENGINE COUPLING (FRONT)	B11

D001A – Dashboard

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A01	0,35	HM		See D097A SHORT CIRCUITING COUPLING (DASHBOARD)	7
A02	0,75	GN		See D097A SHORT CIRCUITING COUPLING (DASHBOARD)	5
A03	0,75	GR		See D097A SHORT CIRCUITING COUPLING (DASHBOARD)	2
A04	0,35	MV		See H090A SWITCH CONTROL PANEL (DASHBOARD)	6
A05	0,35	AV		See H090A SWITCH CONTROL PANEL (DASHBOARD)	8
A06	1,5	BR		See D097D SHORT CIRCUITING COUPLING (DASHBOARD)	7
A07	0,75	AR		See D097D SHORT CIRCUITING COUPLING (DASHBOARD)	2
A08	0,5	HN		See H005A STEERING COLUMN SWITCH UNIT (DASHBOARD)	2
B01	0,5	RN		See D097B SHORT CIRCUITING COUPLING (DASHBOARD)	5
B02	0,75	AN		See H090B SWITCH CONTROL PANEL (DASHBOARD)	12
B03	0,75	AN		See H090B SWITCH CONTROL PANEL (DASHBOARD)	14
B04	0,75	SB		See H090B SWITCH CONTROL PANEL (DASHBOARD)	6
B05	0,75	SB		See H090B SWITCH CONTROL PANEL (DASHBOARD)	20
B06	0,35	HV		See E050D INSTRUMENT PANEL (DASHBOARD)	15
B07	0,35	HL		See E050A INSTRUMENT PANEL (DASHBOARD)	3
B08	0,35	HG		See E050B INSTRUMENT PANEL (DASHBOARD)	7
B09	0,35	BH		See E050D INSTRUMENT PANEL (DASHBOARD)	16
B10	0,35	BM		See E050A INSTRUMENT PANEL (DASHBOARD)	9
B11	0,5	GV		See H005A STEERING COLUMN SWITCH UNIT (DASHBOARD)	4
B12	0,5	H		See H005A STEERING COLUMN SWITCH UNIT (DASHBOARD)	5
C01	0,35	MN		See E050B INSTRUMENT PANEL (DASHBOARD)	2
C02	0,35	BN		See E050B INSTRUMENT PANEL (DASHBOARD)	3
C03	0,35	HR		See E050D INSTRUMENT PANEL (DASHBOARD)	14
C04	0,35	BG		See R010 MULTIPLE TESTER CONNECTION	7
C05	0,35	AS		See E050A INSTRUMENT PANEL (DASHBOARD)	1
C06	0,35	BL		See E050B INSTRUMENT PANEL (DASHBOARD)	4
C07	0,35	NR		See E050A INSTRUMENT PANEL (DASHBOARD)	7
C08	0,35	NV		See E050D INSTRUMENT PANEL (DASHBOARD)	17
C09	0,35	BZ		See E050D INSTRUMENT PANEL (DASHBOARD)	13
C10	0,35	NZ		See E050A INSTRUMENT PANEL (DASHBOARD)	5
C11	0,5	V		See R010 MULTIPLE TESTER CONNECTION	8
C12	0,35	SZ		See H005A STEERING COLUMN SWITCH UNIT (DASHBOARD)	6
D01	0,5	VB		See H015 HEADLAMP ALIGNMENT CONTROL	1
D02	0,5	N		See H015 HEADLAMP ALIGNMENT CONTROL	3
D03	0,5	HB		See H015 HEADLAMP ALIGNMENT CONTROL	2
D04	1,5	A		See D097D SHORT CIRCUITING COUPLING (DASHBOARD)	5
D06	1	AG		See H005A STEERING COLUMN SWITCH UNIT (DASHBOARD)	1
D07	0,5	Z		See E050B INSTRUMENT PANEL (DASHBOARD)	10
D08	0,5	BV		See E050A INSTRUMENT PANEL (DASHBOARD)	2
D08	0,5	LB		See E050D INSTRUMENT PANEL (DASHBOARD)	18

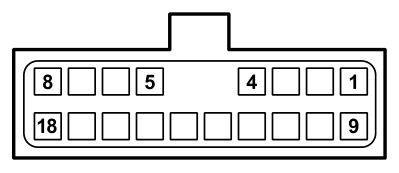

D001B – Front

2.8 JTD 8V · Automatic Transmission

Wiring	Colour
See 12 FRONT	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin

2.3 JTD 16V, 2.8 JTD 8V

Wiring	Colour
See 12 FRONT	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin

2.0 JTD 8V

Wiring	Colour
See 12 FRONT	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin

2.0 16V

Wiring	Colour
See 12 FRONT	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin

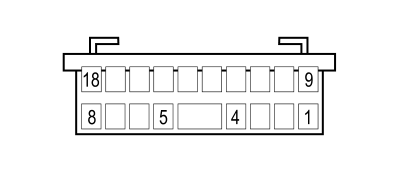

D001B – Dashboard

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	HN		See I030 BRAKE PEDAL SWITCH	1
2	0,35	SR		See E050C INSTRUMENT PANEL (DASHBOARD)	9
3	0,35	GR		See E050B INSTRUMENT PANEL (DASHBOARD)	11
4	1,5	AN		See B002C JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	47
5	0,35	NV		See H090A SWITCH CONTROL PANEL (DASHBOARD)	3
6	0,5	RN		See D097B SHORT CIRCUITING COUPLING (DASHBOARD)	4
7	0,35	BZ		See E050C INSTRUMENT PANEL (DASHBOARD)	7
8	0,35	BR		See E050C INSTRUMENT PANEL (DASHBOARD)	8
9	0,5	LB		See B002C JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	4
10	0,35	BV		See R010 MULTIPLE TESTER CONNECTION	1
11	0,5	G		See D097C SHORT CIRCUITING COUPLING (DASHBOARD)	3
12	0,35	HG		See E050E INSTRUMENT PANEL (DASHBOARD)	15
13	0,5	V		See E050C INSTRUMENT PANEL (DASHBOARD)	6
14	0,5	B	X	See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD)	13
				See R010 MULTIPLE TESTER CONNECTION	11
15	0,5	LG		See R010 MULTIPLE TESTER CONNECTION	12
16	0,5	HM		See D097A SHORT CIRCUITING COUPLING (DASHBOARD)	9
17	0,5	MZ		See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD)	14
18	0,35	NS		See E050B INSTRUMENT PANEL (DASHBOARD)	12
19	0,5	HG		See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD)	2

‹ Prev C090 heat flange earth Next › D004 front/engine coupling

Parts & tools for this job For 2002 Fiat Ducato

Links open Amazon search results in a new tab. As an Amazon Associate I earn from qualifying purchases.
