F020 left side repeater
- Make
- Fiat
- Model
- Ducato Factory Service Manual
- Year
- 2002–2006
- Section
- Exterior lights › F020 left side repeater
Connectors and pin-outsF020 left side repeater

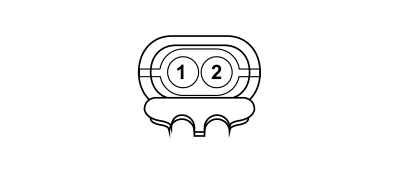

F020 LEFT SIDE REPEATER
| Wiring | Colour |
|---|---|
| See 12 FRONT |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,75 | SB | See D001A FRONT/DASHBOARD COUPLING (FRONT) | B05 | |
| 2 | 0,75 | NZ | See C010 LEFT FRONT EARTH | 2 | |
