F065 flasher

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Exterior lights › F065 flasher

Connectors and pin-outsF065 flasher

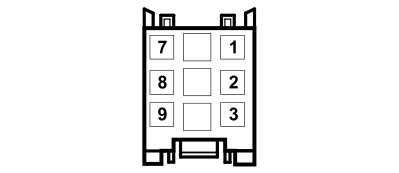

F065 FLASHER

Minibus

Wiring	Colour
See 19 OPTIONAL DASHBOARD

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	A	X	See B101B OPTIONAL JUNCTION UNIT UNDER THE DASHBOARD (OPTIONAL DASHBOARD)	35
				See D018A ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT)	A10
2	1,5	RN	X	See D018A ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT)	B08
				See H020 HAZARD WARNING LIGHTS SWITCH	3
5	0,75	AN		See H090C SWITCH CONTROL PANEL (OPTIONAL DASHBOARD)	7
6	0,5	N	X	See H115 ADDITIONAL CONTROL PANEL	4
				See H120D PASSENGER COMPARTMENT VENTILATION CONTROL (OPTIONAL DASHBOARD)	1
				See C020 PASSENGER SIDE DASHBOARD EARTH	10
				See D174C OPTIONAL DASHBOARD/PASSENGER COURTESY LIGHT COUPLING (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	3
8	0,75	SB		See D097L SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	7
