F011 right headlamp

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Exterior lights › F011 right headlamp

Connectors and pin-outsF011 right headlamp

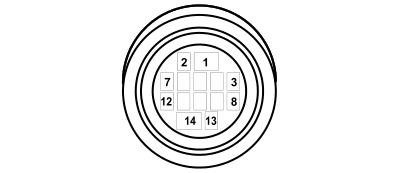

F011 RIGHT HEADLAMP

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	N		See C010 LEFT FRONT EARTH	5
6	1	H		See B001C JUNCTION UNIT (FRONT)	22
7	0,5	NZ	X	See C010 LEFT FRONT EARTH	1
				See F010 LEFT HEADLAMP	7
				See D001A FRONT/DASHBOARD COUPLING (FRONT)	D02
8	0,5	VB	X	See F010 LEFT HEADLAMP	8
				See D001A FRONT/DASHBOARD COUPLING (FRONT)	D01
9	0,5	HB	X	See B001C JUNCTION UNIT (FRONT)	24
				See F010 LEFT HEADLAMP	9
				See D001A FRONT/DASHBOARD COUPLING (FRONT)	D03
10	0,75	AN		See D001A FRONT/DASHBOARD COUPLING (FRONT)	B02
11	0,75	GR		See D001A FRONT/DASHBOARD COUPLING (FRONT)	A03
12	1	V		See B001C JUNCTION UNIT (FRONT)	5
