F016 right fog lamp

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Exterior lights › F016 right fog lamp

Connectors and pin-outsF016 right fog lamp

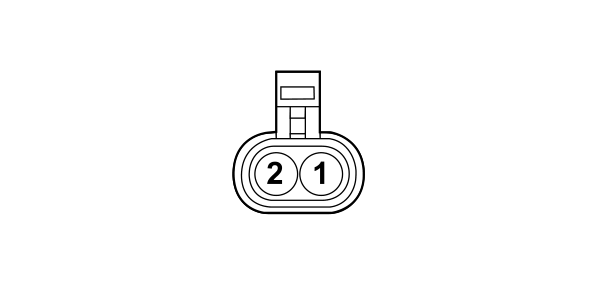

F016 RIGHT FOG LAMP

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	Z	X	See B001C JUNCTION UNIT (FRONT)	1
				See F015 LEFT FOG LAMP	1
2	1	N		See C010 LEFT FRONT EARTH	15

22 General
