H115 additional control panel

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Manual electric controls › H115 additional control panel

Connectors and pin-outsH115 additional control panel

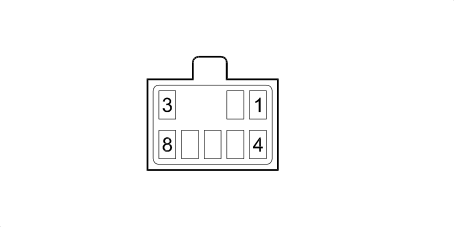

H115 ADDITIONAL CONTROL PANEL

Minibus

Wiring	Colour
See 19 OPTIONAL DASHBOARD

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	AV		See D160 DASHBOARD/OPTIONAL DASHBOARD COUPLING	11
2	0,5	GN		See D097E SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	3
4	0,5	N	X	See H120D PASSENGER COMPARTMENT VENTILATION CONTROL (OPTIONAL DASHBOARD)	1
				See C020 PASSENGER SIDE DASHBOARD EARTH	10
				See D174C OPTIONAL DASHBOARD/PASSENGER COURTESY LIGHT COUPLING (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	3
				See F065 FLASHER	6
6	1	LR		See D174C OPTIONAL DASHBOARD/PASSENGER COURTESY LIGHT COUPLING (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	1
7	1	R		See D174C OPTIONAL DASHBOARD/PASSENGER COURTESY LIGHT COUPLING (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	2
