H001 ignition switch

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Manual electric controls › H001 ignition switch

Connectors and pin-outsH001 ignition switch

H001 IGNITION SWITCH

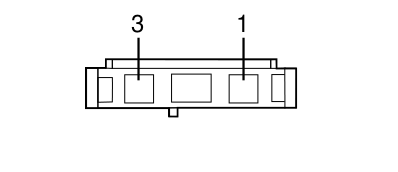

H001A – Front

2.8 JTD 8V · Automatic Transmission

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	C		See B001C JUNCTION UNIT (FRONT)	30
2	2,5	R		See B001C JUNCTION UNIT (FRONT)	31
3	2,5	RN		See B001C JUNCTION UNIT (FRONT)	3

2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	C		See B001C JUNCTION UNIT (FRONT)	30
2	2,5	R		See B001C JUNCTION UNIT (FRONT)	31
3	2,5	RN		See B001C JUNCTION UNIT (FRONT)	15

2.0 16V

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	C		See B001C JUNCTION UNIT (FRONT)	30
2	2,5	R		See B001C JUNCTION UNIT (FRONT)	31
3	2,5	RN		See D007B ALTERNATOR COUPLING (FRONT)	B

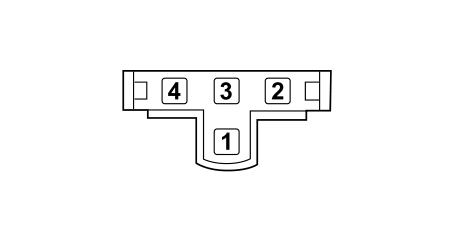

H001B – Dashboard

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	A		See B002C JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	48
2	2,5	L		See B002B JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	1
3	1	AV		See B002B JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	2
4	1	BL		See H005B STEERING COLUMN SWITCH UNIT (DASHBOARD)	5
