H090 switch control panel

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Manual electric controls › H090 switch control panel

Connectors and pin-outsH090 switch control panel

H090 SWITCH CONTROL PANEL

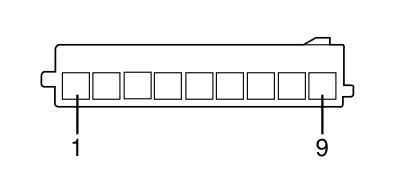

H090A – Dashboard

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	GN		See M120A Connect front panel (DASHBOARD)	6
2	0,35	GH		See D097C SHORT CIRCUITING COUPLING (DASHBOARD)	4
3	0,35	NV		See D001B FRONT/DASHBOARD COUPLING (FRONT)	5
4	0,35	ZN		See H005B STEERING COLUMN SWITCH UNIT (DASHBOARD)	1
5	0,35	ZB		See H005C STEERING COLUMN SWITCH UNIT (DASHBOARD)	6
6	0,35	MV		See D001A FRONT/DASHBOARD COUPLING (FRONT)	A04
7	0,5	SN		See B002C JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	46
8	0,35	AV		See D001A FRONT/DASHBOARD COUPLING (FRONT)	A05
9	0,5	AG		See H005C STEERING COLUMN SWITCH UNIT (DASHBOARD)	3

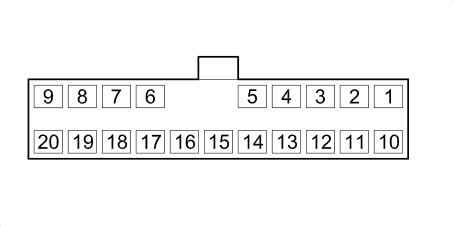

H090B – Dashboard

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	HN		See D025 DASHBOARD/LEFT REAR COUPLING	3
2	1	HL		See D026 DASHBOARD/RIGHT REAR COUPLING	3
3	1	H		See B002C JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	28
4	0,5	RG		See R010 MULTIPLE TESTER CONNECTION	16
5	1	V		See B002C JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	9
6	0,75	SB		See D001A FRONT/DASHBOARD COUPLING (FRONT)	B04
8	0,5	RN		See D042	1
9	0,5	LR		See D026 DASHBOARD/RIGHT REAR COUPLING	2
10	1	N	X	See C015 DASHBOARD EARTH, DRIVER'S SIDE	1
				See H005C STEERING COLUMN SWITCH UNIT (DASHBOARD)	5
				See E050A INSTRUMENT PANEL (DASHBOARD)	4
				See B002C JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	44
				See B002C JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	45
				See M120A Connect front panel (DASHBOARD)	A8
				See P051 Current socket in dashboard	3
				See D042	2
				See R010 MULTIPLE TESTER CONNECTION	4
				See R010 MULTIPLE TESTER CONNECTION	5
12	0,75	AN		See D001A FRONT/DASHBOARD COUPLING (FRONT)	B02
13	0,5	AN		See E050B INSTRUMENT PANEL (DASHBOARD)	5
14	0,75	AN		See D001A FRONT/DASHBOARD COUPLING (FRONT)	B03
15	1	AN		See D026 DASHBOARD/RIGHT REAR COUPLING	6
16	0,5	R		See E050D INSTRUMENT PANEL (DASHBOARD)	10
17	1	RV		See B002C JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	10
18	0,5	SB		See E050B INSTRUMENT PANEL (DASHBOARD)	6
19	1	SB		See D025 DASHBOARD/LEFT REAR COUPLING	6
20	0,75	SB		See D001A FRONT/DASHBOARD COUPLING (FRONT)	B05

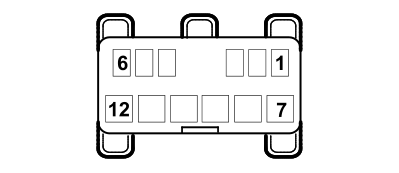

H090C – Optional dashboard

Minibus

Wiring	Colour
See 19 OPTIONAL DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	SB		See D097L SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	8
2	0,75	RV		See D174A OPTIONAL DASHBOARD/PASSENGER COURTESY LIGHT COUPLING (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	1
4	0,5	MZ		See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD)	14
5	0,5	HG		See D097L SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	2
6	0,5	HN		See D018A ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT)	B09
7	0,75	AN		See F065 FLASHER	5
9	0.5	SN		See D174A OPTIONAL DASHBOARD/PASSENGER COURTESY LIGHT COUPLING (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	2
10	0.5	S		See D174A OPTIONAL DASHBOARD/PASSENGER COURTESY LIGHT COUPLING (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	4
11	0,35	MN		See B101B OPTIONAL JUNCTION UNIT UNDER THE DASHBOARD (OPTIONAL DASHBOARD)	44
12	0,35	GN		See D097E SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	1

Chassis cab, Combi, Panorama, Van

Wiring	Colour
See 19 OPTIONAL DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	SB		See D097L SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	8
2	0,75	RV		See D174A OPTIONAL DASHBOARD/PASSENGER COURTESY LIGHT COUPLING (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	1
4	0,5	MZ		See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD)	14
5	0,5	HG		See D097L SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	2
6	0,5	HN		See D018A ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT)	B09
7	1	AN		See D018A ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT)	B04
9	0.5	SN		See D174A OPTIONAL DASHBOARD/PASSENGER COURTESY LIGHT COUPLING (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	2
10	0.5	S		See D174A OPTIONAL DASHBOARD/PASSENGER COURTESY LIGHT COUPLING (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	4
11	0,35	MN		See B101B OPTIONAL JUNCTION UNIT UNDER THE DASHBOARD (OPTIONAL DASHBOARD)	44
12	0,35	GN		See D097E SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	1

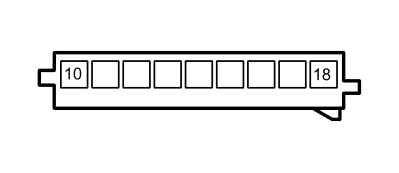

H090D – Dashboard

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
10	0,5	BN		See D026 DASHBOARD/RIGHT REAR COUPLING	9
11	0,5	SN		See D042	3
12	0,5	NZ		See D042	4
13	0,5	VN		See D026 DASHBOARD/RIGHT REAR COUPLING	8
15	0,35	GV		See E050D INSTRUMENT PANEL (DASHBOARD)	11
16	0,35	HV		See H005B STEERING COLUMN SWITCH UNIT (DASHBOARD)	2
17	0,5	H		See H005B STEERING COLUMN SWITCH UNIT (DASHBOARD)	4
18	0,5	LN		See D097B SHORT CIRCUITING COUPLING (DASHBOARD)	6
