C015 dashboard earth, driver's side

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Earths › C015 dashboard earth, driver's side

Connectors and pin-outsC015 dashboard earth, driver's side

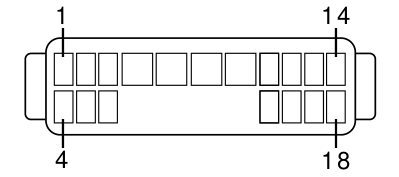

C015 DASHBOARD EARTH, DRIVER'S SIDE

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	N	X	See H090B SWITCH CONTROL PANEL (DASHBOARD)	10
				See H005C STEERING COLUMN SWITCH UNIT (DASHBOARD)	5
				See E050A INSTRUMENT PANEL (DASHBOARD)	4
				See B002C JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	44
				See B002C JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	45
				See M120A Connect front panel (DASHBOARD)	A8
				See P051 Current socket in dashboard	3
				See D042	2
				See R010 MULTIPLE TESTER CONNECTION	4
				See R010 MULTIPLE TESTER CONNECTION	5
