C045 fan earth

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Earths › C045 fan earth

Connectors and pin-outsC045 fan earth

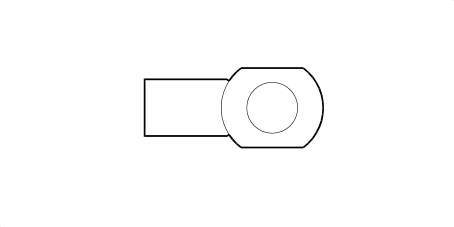

C045 FAN EARTH

2.3 JTD 16V, 2.8 JTD 8V

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	4	N		See N011 FAN MOTOR	B
	4	N		See N012 ENGINE FAN MOTOR - 2	B

2.0 JTD 8V

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	4	N		See N011 FAN MOTOR	B
	4	N		See D009A FRONT/RADIATOR COUPLING (FRONT)	B

2.0 16V

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	2	N		See D009A FRONT/RADIATOR COUPLING (FRONT)	B
	2	N		See N011 FAN MOTOR	B

2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V · Automatic Transmission, Climate control

Wiring	Colour
See 11 RADIATOR

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	8	N		See N012 ENGINE FAN MOTOR - 2	B
	4	N		See N011 FAN MOTOR	B
