Connectors and pin-outsC001 battery earth

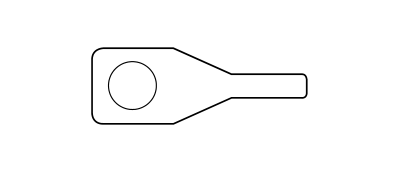

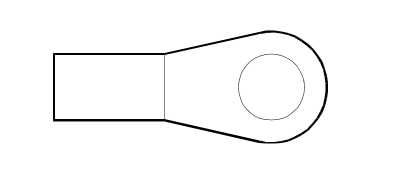

C001 BATTERY EARTH
| Wiring | Colour |
|---|---|
| See 12 FRONT |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 2,5 | NZ | See D005 ABS COUPLING | B8 | |
| Wiring | Colour |
|---|---|
| See 12 FRONT |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 2,5 | NZ | See M050 ABS CONTROL UNIT | 19 | |
| Wiring | Colour |
|---|---|
| See 12 FRONT |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 2,5 | NZ | See M018B LGP UNIT (FRONT) | 27 | |
