D005 ABS coupling

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Intermediate couplings › D005 ABS coupling

Connectors and pin-outsD005 ABS coupling

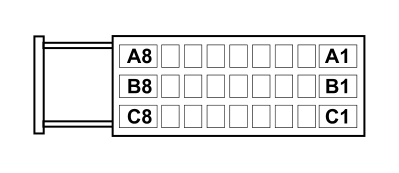

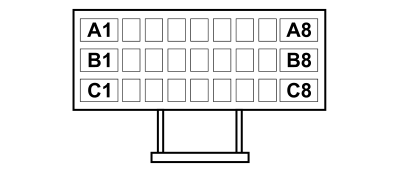

D005 ABS COUPLING

ASR system, Automatic Transmission

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin

2.8 JTD 8V · Automatic Transmission

Wiring	Colour
See 118 ABS BRIDGE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A1	0,5	MZ		See M050 ABS CONTROL UNIT	31
A2	0,5	RN		See M050 ABS CONTROL UNIT	14
A3	0,5	LB		See M050 ABS CONTROL UNIT	15
A4	0,35	HG		See M050 ABS CONTROL UNIT	28
A5	0,35	B-T21	X	See M050 ABS CONTROL UNIT	29
				See D005 ABS COUPLING	A8
A6	0,35	V-T21	X	See M050 ABS CONTROL UNIT	30
				See D005 ABS COUPLING	A7
A7	0,35	V-T22	X	See M050 ABS CONTROL UNIT	30
				See D005 ABS COUPLING	A6
A8	0,35	B-T22	X	See M050 ABS CONTROL UNIT	29
				See D005 ABS COUPLING	A5
B1	4	R		See M050 ABS CONTROL UNIT	18
B2	0,5	M-T10		See M050 ABS CONTROL UNIT	8
B3	0,5	BL-T10		See M050 ABS CONTROL UNIT	9
B4	0,5	BR		See M050 ABS CONTROL UNIT	21
B5	0,5	ZB		See M050 ABS CONTROL UNIT	20
B6	0,5	BV		See M050 ABS CONTROL UNIT	11
B8	2,5	NZ		See M050 ABS CONTROL UNIT	19
C1	4	N		See M050 ABS CONTROL UNIT	16
C2	0,5	VN-T12		See M050 ABS CONTROL UNIT	1
C3	0,5	BN-T12		See M050 ABS CONTROL UNIT	2
C4	0,5	MB-T13		See M050 ABS CONTROL UNIT	3
C5	0,5	BC-T13		See M050 ABS CONTROL UNIT	4
C6	0,5	MN-T14		See M050 ABS CONTROL UNIT	6
C7	0,5	B-T14		See M050 ABS CONTROL UNIT	7
C8	4	R		See M050 ABS CONTROL UNIT	17
