D176 optional dashboard/tachograph coupling

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Intermediate couplings › D176 optional dashboard/tachograph coupling

Connectors and pin-outsD176 optional dashboard/tachograph coupling

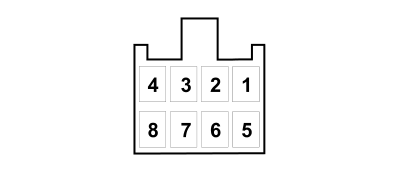

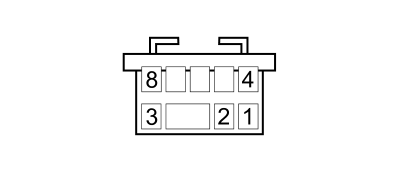

D176 OPTIONAL DASHBOARD/TACHOGRAPH COUPLING

Wiring	Colour
See 104 TACHOGRAPH BRIDGE	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	N-T18		See E005B TACHOGRAPH (TACHOGRAPH BRIDGE)	1
2	0,75	M-T19		See E005B TACHOGRAPH (TACHOGRAPH BRIDGE)	2
3	0,75	L-T18		See E005B TACHOGRAPH (TACHOGRAPH BRIDGE)	3
4	0,75	B-T19		See E005B TACHOGRAPH (TACHOGRAPH BRIDGE)	4

Wiring	Colour
See 105 TACHOGRAPH SENSOR BRIDGE	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	N-T21		See K152 TACHOGRAPH SENSOR	1
2	0,75	M-T22		See K152 TACHOGRAPH SENSOR	2
3	0,75	L-121		See K152 TACHOGRAPH SENSOR	3
4	0,75	B-T22		See K152 TACHOGRAPH SENSOR	4
