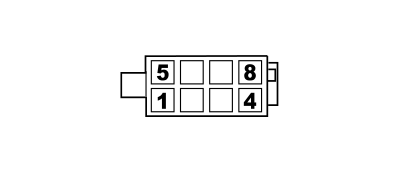

E005 TACHOGRAPH

E005A – Optional dashboard

Wiring	Colour
See 19 OPTIONAL DASHBOARD

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	NR		See D097H SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	6
2	0,35	GN		See D097E SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	4
3	0,35	L		See D097F SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	6
5	0,35	NZ	X	See E005A TACHOGRAPH (OPTIONAL DASHBOARD)	6
				See C020 PASSENGER SIDE DASHBOARD EARTH	18
6	0,35	NZ	X	See E005A TACHOGRAPH (OPTIONAL DASHBOARD)	5
				See C020 PASSENGER SIDE DASHBOARD EARTH	18

E005B – Tachograph bridge

Wiring	Colour
See 104 TACHOGRAPH BRIDGE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	N-T18		See D176 OPTIONAL DASHBOARD/TACHOGRAPH COUPLING	1
2	0,75	M-T19		See D176 OPTIONAL DASHBOARD/TACHOGRAPH COUPLING	2
3	0,75	L-T18		See D176 OPTIONAL DASHBOARD/TACHOGRAPH COUPLING	3
4	0,75	B-T19		See D176 OPTIONAL DASHBOARD/TACHOGRAPH COUPLING	4
7	0,5	V		See D177 DASHBOARD/TACHOGRAPH COUPLING	1
