Connectors and pin-outsD177 dashboard/tachograph coupling

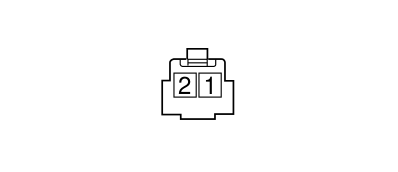

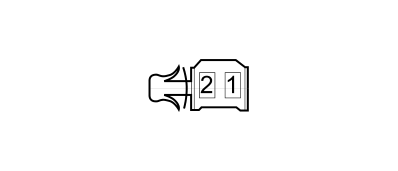

D177 DASHBOARD/TACHOGRAPH COUPLING
| Wiring | Colour |
|---|---|
| See 104 TACHOGRAPH BRIDGE | BIANCO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | V | See E005A TACHOGRAPH (OPTIONAL DASHBOARD) | 7 | |
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | VN | See E050E INSTRUMENT PANEL (DASHBOARD) | 14 | |
