D188 engine/LPG junction

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Intermediate couplings › D188 engine/LPG junction

Connectors and pin-outsD188 engine/LPG junction

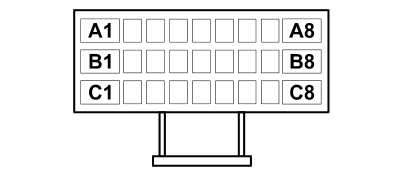

D188 ENGINE/LPG JUNCTION

2.0 16V · GPL

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A1	1,5	N	X	See L096B LPG RETURN SOLENOID VALVE (FRONT)	1
				See L095B LPG DELIVERY SOLENOID VALVE (FRONT)	1
A2	0,5	B		See M018B LGP UNIT (FRONT)	43
A3	0,5	B		See M018B LGP UNIT (FRONT)	52
A4	0,5	B		See M018B LGP UNIT (FRONT)	35
A5	0,5	B		See M018B LGP UNIT (FRONT)	44
A6	0,5	B		See M018B LGP UNIT (FRONT)	11
A7	0,5	B		See M018B LGP UNIT (FRONT)	23
A8	2,5	GV		See K185 LPG MOTOR DRIVEN PUMPCURRENT SENSOR	5
B1	1,5	AN	X	See M018B LGP UNIT (FRONT)	34
				See J145 PGL RETURN SOLENOID VALVE REMOTE CONTROL	85
				See J026 LPG SUPPLY REMOTE CONTROL	85
				See K185 LPG MOTOR DRIVEN PUMPCURRENT SENSOR	4
				See J024 LPG SOLENOID VALVE REMOTE CONTROL	85
B2	0,5	R		See M018B LGP UNIT (FRONT)	32
B3	0,5	R		See M018B LGP UNIT (FRONT)	51
B4	0,5	R		See M018B LGP UNIT (FRONT)	46
B5	0,5	R		See M018B LGP UNIT (FRONT)	33
B6	0,5	R		See M018B LGP UNIT (FRONT)	12
B8	0,5	HV		See M018B LGP UNIT (FRONT)	42
C2	0,5	BR		See M018B LGP UNIT (FRONT)	3
C3	0,75	HN	X	See M018A LGP UNIT (FRONT)	80
				See N073A LGP ELECTRIC INJECTOR (FRONT)	2
				See N073B LGP ELECTRIC INJECTOR (FRONT)	2
				See N073C LGP ELECTRIC INJECTOR (FRONT)	2
				See M018A LGP UNIT (FRONT)	66
				See N073D LGP ELECTRIC INJECTOR (FRONT)	2
				See M018A LGP UNIT (FRONT)	59
				See J026 LPG SUPPLY REMOTE CONTROL	87
C5	0,5	GN	X	See K053 LPG PRESSURE SENSOR	1
				See D189 DASHBOARD/LPG JUNCTION	6
				See M018B LGP UNIT (FRONT)	22
C6	0,75	L		See M018B LGP UNIT (FRONT)	1
C7	0,5	R		See M018B LGP UNIT (FRONT)	38
C8	0,75	BZ		See M018A LGP UNIT (FRONT)	74
