D186 front/ABS coupling

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Intermediate couplings › D186 front/ABS coupling

Connectors and pin-outsD186 front/ABS coupling

D186 FRONT/ABS COUPLING

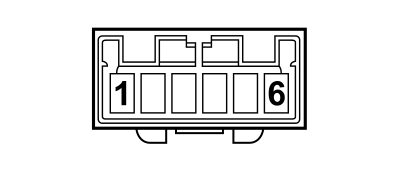

D186A – Abs

Wiring	Colour
See 63 ABS	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	RN		See D005 ABS COUPLING	A2
2	0,5	ZB		See D005 ABS COUPLING	B5
3	0,5	BR		See D005 ABS COUPLING	B4
4	0,5	LB		See D005 ABS COUPLING	A3
5	0,5	BV		See D005 ABS COUPLING	B6

ASR system

Wiring	Colour
See 63 ABS	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	RN		See M050 ABS CONTROL UNIT	14
2	0,5	ZB		See M050 ABS CONTROL UNIT	20
3	0,5	BR		See M050 ABS CONTROL UNIT	21
4	0,5	LB		See M050 ABS CONTROL UNIT	15
5	0,5	BV		See M050 ABS CONTROL UNIT	11

D186A – Front

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	RN		See D001B FRONT/DASHBOARD COUPLING (FRONT)	6
2	0,35	BZ		See D001B FRONT/DASHBOARD COUPLING (FRONT)	7
3	0,35	BR		See D001B FRONT/DASHBOARD COUPLING (FRONT)	8
4	0,5	LB		See D001B FRONT/DASHBOARD COUPLING (FRONT)	9
5	0,35	BV		See D001B FRONT/DASHBOARD COUPLING (FRONT)	10

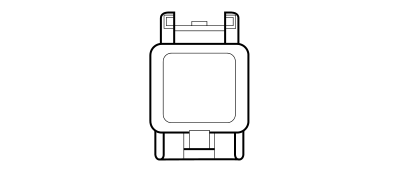

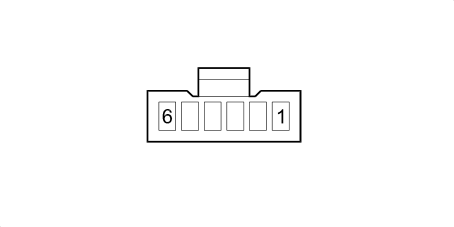

D186B – Abs

Wiring	Colour
See 63 ABS	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	6	R	X	See D005 ABS COUPLING	C8
				See D005 ABS COUPLING	B1

ASR system

Wiring	Colour
See 63 ABS	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	6	R	X	See M050 ABS CONTROL UNIT	17
				See M050 ABS CONTROL UNIT	18

D186B – Front

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	6	R		See B001D JUNCTION UNIT (FRONT)	B

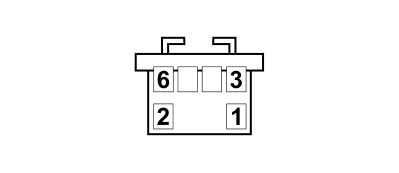

D186C – Abs

Wiring	Colour
See 63 ABS	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	HG		See D005 ABS COUPLING	A4
2	0,5	MZ		See D005 ABS COUPLING	A1
3	0,35	B-T21		See D005 ABS COUPLING	A5
4	0,35	V-T21		See D005 ABS COUPLING	A6
5	0,35	V-T22		See D005 ABS COUPLING	A7
6	0,35	B-T22		See D005 ABS COUPLING	A8

ASR system

Wiring	Colour
See 63 ABS	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	HG		See M050 ABS CONTROL UNIT	28
2	0,5	MZ		See M050 ABS CONTROL UNIT	31
3	0,35	B-T21	X	See M050 ABS CONTROL UNIT	29
				See D186C FRONT/ABS COUPLING (ABS)	6
4	0,35	V-T21	X	See M050 ABS CONTROL UNIT	30
				See D186C FRONT/ABS COUPLING (ABS)	5
5	0,35	V-T22	X	See M050 ABS CONTROL UNIT	30
				See D186C FRONT/ABS COUPLING (ABS)	4
6	0,35	B-T22	X	See M050 ABS CONTROL UNIT	29
				See D186C FRONT/ABS COUPLING (ABS)	3

D186C – Front

2.0 JTD 8V · Climate control

Wiring	Colour
See 12 FRONT	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	HG		See D001B FRONT/DASHBOARD COUPLING (FRONT)	12
2	0,5	MZ		See D001B FRONT/DASHBOARD COUPLING (FRONT)	17
5	0,35	V-T23		See O005 LOAD RESISTANCE ON FRONT CABLE	2
6	0,35	B-T23		See O005 LOAD RESISTANCE ON FRONT CABLE	1

2.3 JTD 16V, 2.8 JTD 8V

Wiring	Colour
See 12 FRONT	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	HG		See D001B FRONT/DASHBOARD COUPLING (FRONT)	12
2	0,5	MZ		See D001B FRONT/DASHBOARD COUPLING (FRONT)	17
3	0,35	B-T16		See D004A FRONT/ENGINE COUPLING (FRONT)	B05
4	0,35	V-T16		See D004A FRONT/ENGINE COUPLING (FRONT)	B06
5	0,35	V-T20		See H037 GEAR CONTROLS	4
6	0,35	B-T20		See H037 GEAR CONTROLS	6
