D009 front/radiator coupling
- Make
- Fiat
- Model
- Ducato Factory Service Manual
- Year
- 2002–2006
- Section
- Intermediate couplings › D009 front/radiator coupling
Connectors and pin-outsD009 front/radiator coupling
D009 FRONT/RADIATOR COUPLING

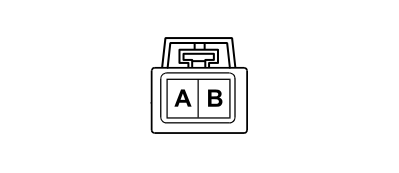

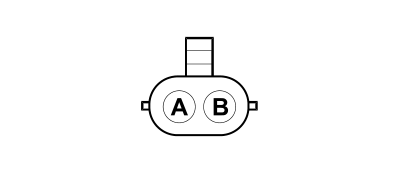

D009A – Front
| Wiring | Colour |
|---|---|
| See 12 FRONT |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| A | 4 | R | See B001E JUNCTION UNIT (FRONT) | A | |
| B | 4 | N | See C045 FAN EARTH | ||
| Wiring | Colour |
|---|---|
| See 12 FRONT |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| A | 4 | RN | X | See B001E JUNCTION UNIT (FRONT) | A |
| See J028 ENGINE COOLING FAN RELAY | 5 | ||||
| See N011 FAN MOTOR | A | ||||
| See O010B ENGINE FAN ADJUSTMENT RESISTANCE - 1 (FRONT) | 1 | ||||
| B | 4 | N | See C045 FAN EARTH | 1 | |

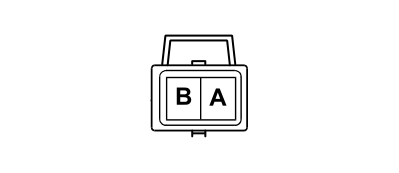

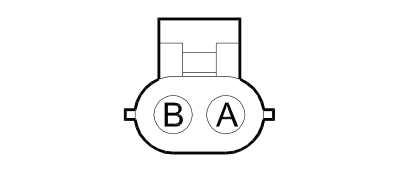

D009A – Radiator
| Wiring | Colour |
|---|---|
| See 11 RADIATOR | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| A | 4 | RN | See N012 ENGINE FAN MOTOR - 2 | A | |
| B | 4 | N | See N012 ENGINE FAN MOTOR - 2 | B | |
D009B – Front
| Wiring | Colour |
|---|---|
| See 12 FRONT | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | G | See D004A FRONT/ENGINE COUPLING (FRONT) | D05 | |
D009B – Radiator
| Wiring | Colour |
|---|---|
| See 11 RADIATOR | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | G | See J028 ENGINE COOLING FAN RELAY | 2 | |

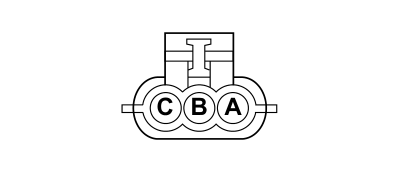

D009C – Front
| Wiring | Colour |
|---|---|
| See 12 FRONT |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| A | 8 | RN | See B001E JUNCTION UNIT (FRONT) | A | |

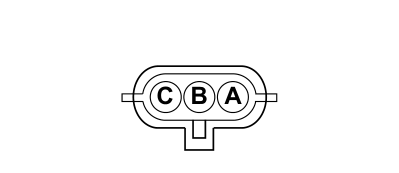

D009C – Radiator
| Wiring | Colour |
|---|---|
| See 11 RADIATOR |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| A | 8 | RN | X | See O010B ENGINE FAN ADJUSTMENT RESISTANCE - 1 (FRONT) | 1 |
| See N012 ENGINE FAN MOTOR - 2 | A | ||||
