D097 short circuiting coupling

Make: Fiat
Model: Ducato Factory Service Manual
Year: 2002–2006
Section: Intermediate couplings › D097 short circuiting coupling

‹ Prev D089 parking sensor coupling Next › D145 front/cilc (fuel level gauge circuit) coupling

Connectors and pin-outsD097 short circuiting coupling

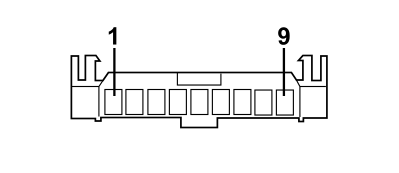

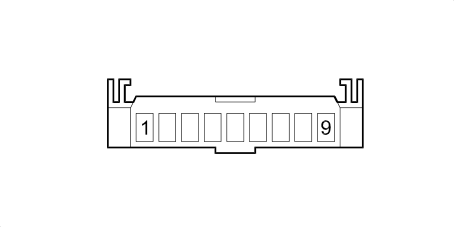

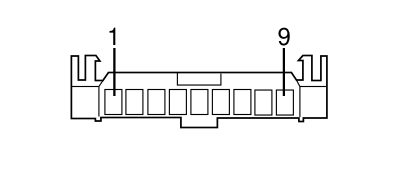

D097 SHORT CIRCUITING COUPLING

D097A – Dashboard

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	GR		See B002C JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	25
2	0,75	GR		See D001A FRONT/DASHBOARD COUPLING (FRONT)	A03
3	0,75	GR		See D025 DASHBOARD/LEFT REAR COUPLING	1
4	1	GN		See B002C JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	26
5	0,75	GN		See D001A FRONT/DASHBOARD COUPLING (FRONT)	A02
6	0,75	GN		See D026 DASHBOARD/RIGHT REAR COUPLING	1
7	0,35	HM		See D001A FRONT/DASHBOARD COUPLING (FRONT)	A01
8	0,35	HM		See E050B INSTRUMENT PANEL (DASHBOARD)	1
9	0,5	HM		See D001B FRONT/DASHBOARD COUPLING (FRONT)	16

D097B – Dashboard

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	RN		See I030 BRAKE PEDAL SWITCH	2
2	1	RN		See D025 DASHBOARD/LEFT REAR COUPLING	4
3	1	RN		See D026 DASHBOARD/RIGHT REAR COUPLING	4
4	0,5	RN		See D001B FRONT/DASHBOARD COUPLING (FRONT)	6
5	0,5	RN		See D001A FRONT/DASHBOARD COUPLING (FRONT)	B01
6	0,5	LN		See H090D SWITCH CONTROL PANEL (DASHBOARD)	18
7	0,5	LN		See E050D INSTRUMENT PANEL (DASHBOARD)	12
8	1	LN		See H005B STEERING COLUMN SWITCH UNIT (DASHBOARD)	6
9	1	LN		See B002C JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	8

D097C – Dashboard

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	BG		See B002C JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	24
2	0,75	BG		See D025 DASHBOARD/LEFT REAR COUPLING	2
3	0,5	G		See D001B FRONT/DASHBOARD COUPLING (FRONT)	11
4	0,35	GH		See H090A SWITCH CONTROL PANEL (DASHBOARD)	2
5	0,5	G		See D021 DASHBOARD/AIR CONDITIONING-HEATER COUPLING	C
6	0,35	GH		See E050B INSTRUMENT PANEL (DASHBOARD)	9
7	0,5	G		See P051 Current socket in dashboard	1

D097D – Dashboard

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	AR		See B002A JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	1
2	0,75	AR		See D001A FRONT/DASHBOARD COUPLING (FRONT)	A07
3	0,5	AR		See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD)	7
4	0,5	AR		See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD)	10
5	1,5	A		See D001A FRONT/DASHBOARD COUPLING (FRONT)	D04
6	0,5	B	X	See D026 DASHBOARD/RIGHT REAR COUPLING	10
				See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD)	16
				See D025 DASHBOARD/LEFT REAR COUPLING	10
7	1,5	BR		See D001A FRONT/DASHBOARD COUPLING (FRONT)	A06
8	1,5	BR		See D025 DASHBOARD/LEFT REAR COUPLING	5
9	1,5	BR		See D026 DASHBOARD/RIGHT REAR COUPLING	5

D097E – Optional dashboard

Minibus

Wiring	Colour
See 19 OPTIONAL DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	GN		See H090C SWITCH CONTROL PANEL (OPTIONAL DASHBOARD)	12
2	0,35	GN		See D075 RADIO PHONE COUPLING	8
3	0,5	GN		See H115 ADDITIONAL CONTROL PANEL	2
4	0,35	GN		See E005A TACHOGRAPH (OPTIONAL DASHBOARD)	2
5	0,35	GN	X	See D172A RIGHT REAR/OPTIONAL DASHBOARD COUPLING (RIGHT LONGITUDINAL)	7
				See H005D STEERING COLUMN SWITCH UNIT (OPTIONAL DASHBOARD)	5
				D030A	13
				See D162 OPTIONAL DASHBOARD/LEFT REAR COUPLING	7
				See D016A ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	13
				See H007A CRUISE CONTROL SYSTEM CONTROL (OPTIONAL DASHBOARD)	5
				See M120D Connect front panel (OPTIONAL DASHBOARD)	15
6	0,35	AB		See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD)	8
7	0,35	AB		D030A	6
8	0,35	AB		See D017A ADDITIONAL DASHBOARD/RIGHT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	6
9	0,35	AB		See M135B ELECTRIC WINDOWS/CENTRAL LOCKING CONTROL UNIT (OPTIONAL DASHBOARD)	7

Chassis cab, Combi, Panorama, Van

Wiring	Colour
See 19 OPTIONAL DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	GN		See H090C SWITCH CONTROL PANEL (OPTIONAL DASHBOARD)	12
2	0,35	GN		See D075 RADIO PHONE COUPLING	8
3	0,5	GN		See H115 ADDITIONAL CONTROL PANEL	2
4	0,35	GN		See E005A TACHOGRAPH (OPTIONAL DASHBOARD)	2
5	0,35	GN	X	D030A	13
				See D017A ADDITIONAL DASHBOARD/RIGHT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	13
				See M120D Connect front panel (OPTIONAL DASHBOARD)	15
				See H005D STEERING COLUMN SWITCH UNIT (OPTIONAL DASHBOARD)	5
				See D172A RIGHT REAR/OPTIONAL DASHBOARD COUPLING (RIGHT LONGITUDINAL)	7
				See H007A CRUISE CONTROL SYSTEM CONTROL (OPTIONAL DASHBOARD)	5
				See D162 OPTIONAL DASHBOARD/LEFT REAR COUPLING	7
6	0,35	AB		See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD)	8
7	0,35	AB		D030A	6
8	0,35	AB		See D017A ADDITIONAL DASHBOARD/RIGHT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	6
9	0,35	AB		See M135B ELECTRIC WINDOWS/CENTRAL LOCKING CONTROL UNIT (OPTIONAL DASHBOARD)	7

D097F – Optional dashboard

Steering wheel radio controls and speakers

Wiring	Colour
See 19 OPTIONAL DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	BL		See D160 DASHBOARD/OPTIONAL DASHBOARD COUPLING	6
2	0,5	LB		See D075 RADIO PHONE COUPLING	7
3	0,35	BL		See D016B ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	8
5	0,35	BL		See D016A ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	14
6	0,35	LB		See E005A TACHOGRAPH (OPTIONAL DASHBOARD)	3
7	0,35	LG		See M035 ALARM REMOTE CONTROL RECEIVER	7
8	0,5	L		See D018A ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT)	A01
9	0,5	A		See B101B OPTIONAL JUNCTION UNIT UNDER THE DASHBOARD (OPTIONAL DASHBOARD)	29

CONNECT

Wiring	Colour
See 19 OPTIONAL DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	BL		See D160 DASHBOARD/OPTIONAL DASHBOARD COUPLING	6
2	0,5	LB		See D075 RADIO PHONE COUPLING	7
3	0,35	BL		See D016B ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	8
5	0,35	BL		See D016A ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	14
6	0,35	L		See E005A TACHOGRAPH (OPTIONAL DASHBOARD)	3
7	0,35	LG		See M035 ALARM REMOTE CONTROL RECEIVER	7
9	0,5	A		See B101B OPTIONAL JUNCTION UNIT UNDER THE DASHBOARD (OPTIONAL DASHBOARD)	29

Alarm

Wiring	Colour
See 19 OPTIONAL DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	BL		See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD)	6
2	0,5	LB		See D075 RADIO PHONE COUPLING	7
3	0,35	BL		See D016B ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	8
4	0,35	BL	X	See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD)	1
				See H007A CRUISE CONTROL SYSTEM CONTROL (OPTIONAL DASHBOARD)	2
5	0,35	BL		See D016A ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	14
6	0,35	LB		See E005A TACHOGRAPH (OPTIONAL DASHBOARD)	3
7	0,35	LG		See M035 ALARM REMOTE CONTROL RECEIVER	7
8	0,5	L		See D018A ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT)	A01
9	0,5	A		See B101B OPTIONAL JUNCTION UNIT UNDER THE DASHBOARD (OPTIONAL DASHBOARD)	29

Cruise Control

Wiring	Colour
See 19 OPTIONAL DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	BL		See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD)	6
2	0,5	LB		See D075 RADIO PHONE COUPLING	7
3	0,35	BL		See D016B ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	8
4	0,35	BL	X	See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD)	1
				See H007A CRUISE CONTROL SYSTEM CONTROL (OPTIONAL DASHBOARD)	2
5	0,35	BL		See D016A ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	14
6	0,35	L		See E005A TACHOGRAPH (OPTIONAL DASHBOARD)	3
7	0,35	LG		See M035 ALARM REMOTE CONTROL RECEIVER	7
9	0,5	A		See B101B OPTIONAL JUNCTION UNIT UNDER THE DASHBOARD (OPTIONAL DASHBOARD)	29

D097G – Optional dashboard

Wiring	Colour
See 19 OPTIONAL DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	H		See M135B ELECTRIC WINDOWS/CENTRAL LOCKING CONTROL UNIT (OPTIONAL DASHBOARD)	5
2	1,5	H		See D017A ADDITIONAL DASHBOARD/RIGHT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	12
3	1,5	H		D030A	12
4	1,5	H		See D172A RIGHT REAR/OPTIONAL DASHBOARD COUPLING (RIGHT LONGITUDINAL)	3
5	1,5	H		See D162 OPTIONAL DASHBOARD/LEFT REAR COUPLING	3
6	0,35	BV		See M135B ELECTRIC WINDOWS/CENTRAL LOCKING CONTROL UNIT (OPTIONAL DASHBOARD)	15
7	0,35	BV		See D017A ADDITIONAL DASHBOARD/RIGHT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	10
8	0,35	BV		D030A	10
9	0,35	BV		See M035 ALARM REMOTE CONTROL RECEIVER	6

D097H – Optional dashboard

Wiring	Colour
See 19 OPTIONAL DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	RN		See D161A OPTIONAL DASHBOARD/AIR CONDITIONING COUPLING (AIR CONDITIONING)	F
2	0,5	RN		See M035 ALARM REMOTE CONTROL RECEIVER	3
3	1	RN		See D018A ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT)	B06
4	1	RN		See B101B OPTIONAL JUNCTION UNIT UNDER THE DASHBOARD (OPTIONAL DASHBOARD)	26
5	0,5	RN		See D075 RADIO PHONE COUPLING	9
6	0,35	NR		See E005A TACHOGRAPH (OPTIONAL DASHBOARD)	1
7	1	MG		See B101B OPTIONAL JUNCTION UNIT UNDER THE DASHBOARD (OPTIONAL DASHBOARD)	16
8	0,5	MG		See D016B ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	1
9	0,5	MG		See D017B ADDITIONAL DASHBOARD/RIGHT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	1

D097I – Optional dashboard

Wiring	Colour
See 19 OPTIONAL DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	G		See M135B ELECTRIC WINDOWS/CENTRAL LOCKING CONTROL UNIT (OPTIONAL DASHBOARD)	4
2	1,5	G		See D017A ADDITIONAL DASHBOARD/RIGHT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	9
3	1,5	G		D030A	9
4	1,5	G		See D172A RIGHT REAR/OPTIONAL DASHBOARD COUPLING (RIGHT LONGITUDINAL)	2
5	1,5	G		See D162 OPTIONAL DASHBOARD/LEFT REAR COUPLING	2
6	0,35	AZ		See M135B ELECTRIC WINDOWS/CENTRAL LOCKING CONTROL UNIT (OPTIONAL DASHBOARD)	16
7	0,35	AZ		See D017A ADDITIONAL DASHBOARD/RIGHT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	11
8	0,35	AZ		D030A	11
9	0,35	AZ		See M035 ALARM REMOTE CONTROL RECEIVER	5

D097L – Optional dashboard

Minibus

Wiring	Colour
See 19 OPTIONAL DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	HG		See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD)	2
2	0,5	HG		See H090C SWITCH CONTROL PANEL (OPTIONAL DASHBOARD)	5
3	0,5	HG		See D018A ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT)	B07
7	0,75	SB		See F065 FLASHER	8
8	0,75	SB		See H090C SWITCH CONTROL PANEL (OPTIONAL DASHBOARD)	1
9	0,5	SB		See D016B ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	9

Chassis cab, Combi, Panorama, Van

Wiring	Colour
See 19 OPTIONAL DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	HG		See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD)	1
2	0,5	HG		See H090C SWITCH CONTROL PANEL (OPTIONAL DASHBOARD)	5
3	0,5	HG		See D018A ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT)	B07
7	1	SB		See D018A ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT)	B05
8	0,5	SB		See H090C SWITCH CONTROL PANEL (OPTIONAL DASHBOARD)	1
9	0,5	SB		See D016B ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	9

D097M – Additional air conditioner bridge

Wiring	Colour
See 113 ADDITIONAL AIR CONDITIONER BRIDGE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	N		See D181 HEATER/ADDITIONAL HEATER COUPLING	A
6	1	RV		See D181 HEATER/ADDITIONAL HEATER COUPLING	B
3	0,75	N		See N141 SECOND ROW SUPPLEMENTARY HEATER	1
8	0,75	RV		See N141 SECOND ROW SUPPLEMENTARY HEATER	2
4	0,75	N		See N142 THIRD ROW SUPPLEMENTARY HEATER	1
9	0,75	RV		See N142 THIRD ROW SUPPLEMENTARY HEATER	2
2	0,75	N		See N140 FRONT SUPPLEMENTARY HEATER	1
7	0,75	RV		See N140 FRONT SUPPLEMENTARY HEATER	2
