22 · General

D160 dashboard/optional dashboard coupling

Make: Fiat
Model: Ducato Factory Service Manual
Year: 2002–2006
Section: Intermediate couplings › D160 dashboard/optional dashboard coupling

Connectors and pin-outsD160 dashboard/optional dashboard coupling

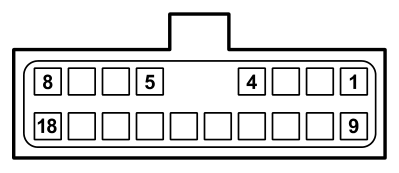

D160 DASHBOARD/OPTIONAL DASHBOARD COUPLING

Aerial on mirror

Wiring	Colour
See 19 OPTIONAL DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	AL	X	See H007A CRUISE CONTROL SYSTEM CONTROL (OPTIONAL DASHBOARD)	2
				See D097F SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	4
2	0,5	HG		See D097L SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	1
3	0,5	BR		See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD)	17
6	0,75	BL		See D097F SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	1
7	0,5	AR		See D161A OPTIONAL DASHBOARD/AIR CONDITIONING COUPLING (AIR CONDITIONING)	C
8	0,35	AB		See D097E SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	6
9	0,5	M		See M120D Connect front panel (OPTIONAL DASHBOARD)	2
10	0,5	AR		See B101A OPTIONAL JUNCTION UNIT UNDER THE DASHBOARD (FRONT)	1
12	0,35	GH		See D016B ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	10
13	0,5	BN		See M035 ALARM REMOTE CONTROL RECEIVER	2
14	0,5	MZ		See H090C SWITCH CONTROL PANEL (OPTIONAL DASHBOARD)	4
15	0,35	BV		See M120D Connect front panel (OPTIONAL DASHBOARD)	13
16	0,5	BR		See M120D Connect front panel (OPTIONAL DASHBOARD)	3
17	0,5	BG		See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD)	3
18	0,5	RV	X	See D165 OPTIONAL DASHBOARD/OPTIONAL COURTESY LIGHT COUPLING	1
				See D017B ADDITIONAL DASHBOARD/RIGHT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	8

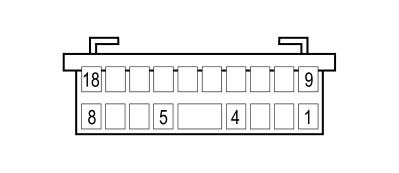

All versions

Wiring	Colour
See 19 OPTIONAL DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	AL	X	See H007A CRUISE CONTROL SYSTEM CONTROL (OPTIONAL DASHBOARD)	2
				See D097F SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	4
2	0,5	HG		See D097L SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	1
3	0,5	BR		See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD)	17
6	0,75	BL		See D097F SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	1
7	0,5	AR		See D161A OPTIONAL DASHBOARD/AIR CONDITIONING COUPLING (AIR CONDITIONING)	C
8	0,35	AB		See D097E SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	6
9	0,5	M		See M120D Connect front panel (OPTIONAL DASHBOARD)	2
10	0,5	AR		See B101A OPTIONAL JUNCTION UNIT UNDER THE DASHBOARD (FRONT)	1
12	0,35	GH		See D016B ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	10
13	0,5	BN		See M035 ALARM REMOTE CONTROL RECEIVER	2
14	0,5	MZ		See H090C SWITCH CONTROL PANEL (OPTIONAL DASHBOARD)	4
15	0,35	BV		See M120D Connect front panel (OPTIONAL DASHBOARD)	13
16	0,5	BR		See M120D Connect front panel (OPTIONAL DASHBOARD)	3
17	0,5	BG		See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD)	3
18	0,5	RV		See D165 OPTIONAL DASHBOARD/OPTIONAL COURTESY LIGHT COUPLING	1

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin

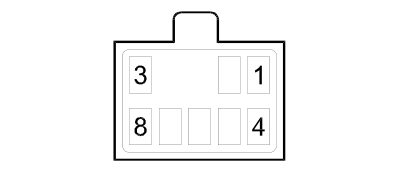

Chassis cab

Wiring	Colour
See 19 OPTIONAL DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
5	1,5	NZ		See D017B ADDITIONAL DASHBOARD/RIGHT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	11
6	1,5	SN		See D017B ADDITIONAL DASHBOARD/RIGHT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	12
7	1,5	RN		See D016B ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	12
8	1,5	BN		See D016B ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	11

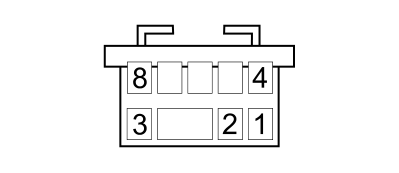

Combi, Minibus, Panorama, Van

Wiring	Colour
See 19 OPTIONAL DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	AG	X	See D162 OPTIONAL DASHBOARD/LEFT REAR COUPLING	9
				See D175 DASHBOARD/PASSENGER COURTESY LIGHT COUPLING	3
2	1,5	AG	X	See D174 OPTIONAL DASHBOARD/PASSENGER COURTESY LIGHT COUPLING	4
				See D162 OPTIONAL DASHBOARD/LEFT REAR COUPLING	2
3	1,5	CV	X	See D175 DASHBOARD/PASSENGER COURTESY LIGHT COUPLING	2
				See D162 OPTIONAL DASHBOARD/LEFT REAR COUPLING	5
4	1,5	CN	X	See D175 DASHBOARD/PASSENGER COURTESY LIGHT COUPLING	1
				See D162 OPTIONAL DASHBOARD/LEFT REAR COUPLING	4
5	1,5	NZ		See D017B ADDITIONAL DASHBOARD/RIGHT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	11
6	1,5	SN		See D017B ADDITIONAL DASHBOARD/RIGHT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	12
7	1,5	RN		See D016B ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	12
8	1,5	BN		See D016B ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	11

Chassis cab

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
5	1,5	NZ	X	See P038 RIGHT FRONT SPEAKER IN DASHBOARD	2
				See M120A Connect front panel (DASHBOARD)	B4
6	1,5	SN	X	See P038 RIGHT FRONT SPEAKER IN DASHBOARD	3
				See M120A Connect front panel (DASHBOARD)	B3
7	1,5	RN	X	See M120A Connect front panel (DASHBOARD)	B5
				See P037 LEFT FRONT SPEAKER IN DASHBOARD	3
8	1,5	BN	X	See M120A Connect front panel (DASHBOARD)	B6
				See P037 LEFT FRONT SPEAKER IN DASHBOARD	2

Combi, Minibus, Panorama, Van

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	AG		See M120A Connect front panel (DASHBOARD)	B1
2	1,5	AG		See M120A Connect front panel (DASHBOARD)	B2
3	1,5	CV		See M120A Connect front panel (DASHBOARD)	B8
4	1,5	CN		See M120A Connect front panel (DASHBOARD)	B7
5	1,5	NZ	X	See P038 RIGHT FRONT SPEAKER IN DASHBOARD	2
				See M120A Connect front panel (DASHBOARD)	B4
6	1,5	SN	X	See P038 RIGHT FRONT SPEAKER IN DASHBOARD	3
				See M120A Connect front panel (DASHBOARD)	B3
7	1,5	RN	X	See M120A Connect front panel (DASHBOARD)	B5
				See P037 LEFT FRONT SPEAKER IN DASHBOARD	3
8	1,5	BN	X	See M120A Connect front panel (DASHBOARD)	B6
				See P037 LEFT FRONT SPEAKER IN DASHBOARD	2
