D189 dashboard/LPG junction

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Intermediate couplings › D189 dashboard/LPG junction

Connectors and pin-outsD189 dashboard/LPG junction

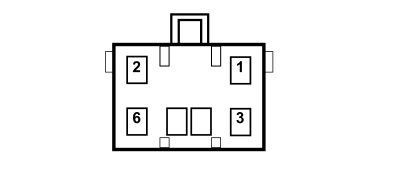

D189 DASHBOARD/LPG JUNCTION

2.0 16V · GPL

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	V		See M018A LGP UNIT (FRONT)	60
2	0,5	M		See M018B LGP UNIT (FRONT)	47
3	0,5	RN	X	See K053 LPG PRESSURE SENSOR	2
				See M018B LGP UNIT (FRONT)	16
4	0,5	H		See M018B LGP UNIT (FRONT)	10
5	0,5	S		See M018B LGP UNIT (FRONT)	15
6	0,5	G	X	See K053 LPG PRESSURE SENSOR	1
				See D188 ENGINE/LPG JUNCTION	C5
				See M018B LGP UNIT (FRONT)	22
