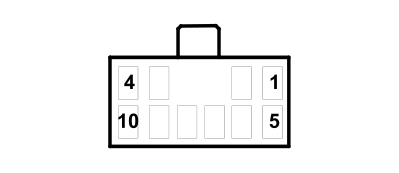

D075 RADIO PHONE COUPLING

CONNECT

Wiring	Colour
See 19 OPTIONAL DASHBOARD

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	BV		See M120C Connect front panel (OPTIONAL DASHBOARD)	9
3	0,35	BN		See M120C Connect front panel (OPTIONAL DASHBOARD)	8
4	0,35	BL		See M120C Connect front panel (OPTIONAL DASHBOARD)	7
7	0,5	LB		See D097F SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	2
8	0,35	GN		See D097E SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	2
9	0,5	RN		See D097H SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	5
10	0,5	N	X	R055	3
				See M120D Connect front panel (OPTIONAL DASHBOARD)	12
				See C020 PASSENGER SIDE DASHBOARD EARTH	2

Cruise Control, Steering wheel radio controls and speakers

Wiring	Colour
See 19 OPTIONAL DASHBOARD

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	BV		See M120C Connect front panel (OPTIONAL DASHBOARD)	9
3	0,35	BN		See M120C Connect front panel (OPTIONAL DASHBOARD)	8
4	0,35	BL		See M120C Connect front panel (OPTIONAL DASHBOARD)	7
7	0,5	LB		See D097F SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	2
8	0,35	GN		See D097E SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	2
9	0,5	RN		See D097H SHORT CIRCUITING COUPLING (OPTIONAL DASHBOARD)	5
10	0,5	N		See C020 PASSENGER SIDE DASHBOARD EARTH	2
