C020 passenger side dashboard earth

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Earths › C020 passenger side dashboard earth

Connectors and pin-outsC020 passenger side dashboard earth

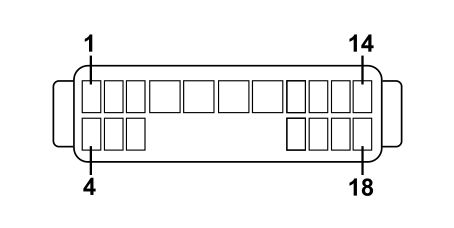

C020 PASSENGER SIDE DASHBOARD EARTH

CONNECT

Wiring	Colour
See 19 OPTIONAL DASHBOARD

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	N		See D017B ADDITIONAL DASHBOARD/RIGHT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	2
2	0,5	N	X	R055	3
				See M120D Connect front panel (OPTIONAL DASHBOARD)	12
				See D075 RADIO PHONE COUPLING	10
3	1,5	N		See M135B ELECTRIC WINDOWS/CENTRAL LOCKING CONTROL UNIT (OPTIONAL DASHBOARD)	13
4	0,35	NZ		See D017A ADDITIONAL DASHBOARD/RIGHT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	3
6	0,5	NZ		See D016B ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	2
7	1,5	N		See M135A ELECTRIC WINDOWS/CENTRAL LOCKING CONTROL UNIT (OPTIONAL DASHBOARD)	4
8	1,5	N		See M135A ELECTRIC WINDOWS/CENTRAL LOCKING CONTROL UNIT (OPTIONAL DASHBOARD)	20
9	1,5	N	X	See D018A ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT)	A05
				See H110 ADDITIONAL AIR CONDITIONING TEMPERATURE CONTROLS	2
11	1	N		See D163 OPTIONAL DASHBOARD/HEATER PAD COUPLING	2
12	0,35	NZ		See D016A ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	3
13	0,5	N		See M035 ALARM REMOTE CONTROL RECEIVER	4
14	1,5	N	X	See B101B OPTIONAL JUNCTION UNIT UNDER THE DASHBOARD (OPTIONAL DASHBOARD)	31
				See D164 OPTIONAL DASHBOARD/REFRIGERATOR COUPLING	2
15	0,35	NZ		See B101B OPTIONAL JUNCTION UNIT UNDER THE DASHBOARD (OPTIONAL DASHBOARD)	45
16	0,35	NZ		See E040 ALARM LED	1
17	0,35	NZ		See B101B OPTIONAL JUNCTION UNIT UNDER THE DASHBOARD (OPTIONAL DASHBOARD)	50
18	0,5	N	X	See E005A TACHOGRAPH (OPTIONAL DASHBOARD)	5
				See E005A TACHOGRAPH (OPTIONAL DASHBOARD)	6

Cruise Control, Steering wheel radio controls and speakers

Wiring	Colour
See 19 OPTIONAL DASHBOARD

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	N		See D017B ADDITIONAL DASHBOARD/RIGHT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	2
2	0,5	N		See D075 RADIO PHONE COUPLING	10
3	1,5	N		See M135B ELECTRIC WINDOWS/CENTRAL LOCKING CONTROL UNIT (OPTIONAL DASHBOARD)	13
4	0,35	NZ		See D017A ADDITIONAL DASHBOARD/RIGHT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	3
6	0,5	NZ		See D016B ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	2
7	1,5	N		See M135A ELECTRIC WINDOWS/CENTRAL LOCKING CONTROL UNIT (OPTIONAL DASHBOARD)	4
8	1,5	N		See M135A ELECTRIC WINDOWS/CENTRAL LOCKING CONTROL UNIT (OPTIONAL DASHBOARD)	20
9	1,5	N	X	See D018A ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT)	A05
				See H110 ADDITIONAL AIR CONDITIONING TEMPERATURE CONTROLS	2
11	1	N		See D163 OPTIONAL DASHBOARD/HEATER PAD COUPLING	2
12	0,35	NZ		See D016A ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING (OPTIONAL DASHBOARD)	3
13	0,5	N		See M035 ALARM REMOTE CONTROL RECEIVER	4
14	1,5	N	X	See B101B OPTIONAL JUNCTION UNIT UNDER THE DASHBOARD (OPTIONAL DASHBOARD)	31
				See D164 OPTIONAL DASHBOARD/REFRIGERATOR COUPLING	2
15	0,35	NZ		See B101B OPTIONAL JUNCTION UNIT UNDER THE DASHBOARD (OPTIONAL DASHBOARD)	45
17	0,35	NZ		See B101B OPTIONAL JUNCTION UNIT UNDER THE DASHBOARD (OPTIONAL DASHBOARD)	50
18	0,5	N	X	See E005A TACHOGRAPH (OPTIONAL DASHBOARD)	5
				See E005A TACHOGRAPH (OPTIONAL DASHBOARD)	6
