C030 left rear earth

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Earths › C030 left rear earth

Connectors and pin-outsC030 left rear earth

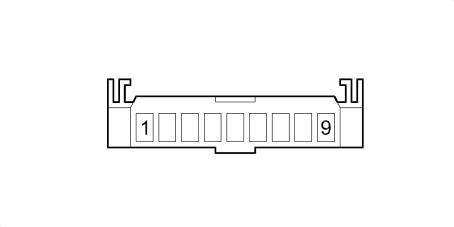

C030 LEFT REAR EARTH

Combi, Minibus, Panorama, Van

Wiring	Colour
See 23 LEFT LONGITUDINAL

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	N	X	See D152 LEFT REAR/LEFT SWING DOOR COUPLING	4
				See D152 LEFT REAR/LEFT SWING DOOR COUPLING	1
				See E048 REVERSE GEAR ENGAGEMENT AUDITORY WARNING	2
				See D178 LEFT REAR/REAR SPEAKER AND REAR CURRENT SOCKET BRIDGE COUPLING	7
				See F030 LEFT REAR LIGHT CLUSTER	6

HIGH radio, Steering wheel radio controls and speakers

Wiring	Colour
See 23 LEFT LONGITUDINAL

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	NZ		See D152 LEFT REAR/LEFT SWING DOOR COUPLING	1
3	1	N		See F030 LEFT REAR LIGHT CLUSTER	6
6	1,5	N		See D152 LEFT REAR/LEFT SWING DOOR COUPLING	4
7	1,5	N		See D178 LEFT REAR/REAR SPEAKER AND REAR CURRENT SOCKET BRIDGE COUPLING	7
9	0,5	N		See E048 REVERSE GEAR ENGAGEMENT AUDITORY WARNING	2
