C040 engine earth

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Earths › C040 engine earth

Connectors and pin-outsC040 engine earth

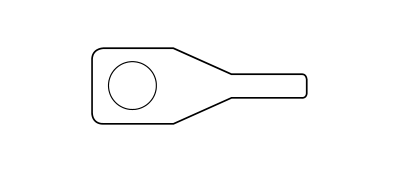

C040 ENGINE EARTH

2.0 16V · Climate control, Methane

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	6	N	X	See M010C ENGINE MANAGEMENT ECU (ENGINE)	H1
				See M010B ENGINE MANAGEMENT ECU (ENGINE)	H4
				See M010A ENGINE MANAGEMENT ECU (ENGINE)	L4
				See M010A ENGINE MANAGEMENT ECU (ENGINE)	M4
				See D004A FRONT/ENGINE COUPLING (FRONT)	A02
				See L020 AIR CONDITIONING COMPRESSOR ENGAGEMENT ELECTRO-MAGNET	2
				See O007A OIL VAPOUR HEATING RESISTANCE (ENGINE)	2
				See O015 THROTTLE CASING HEATING RESISTANCE	2
				See J020 AIR CONDITIONING COMPRESSOR ENGAGEMENT RELAY	5

2.0 16V · Methane

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	6	N	X	See M010C ENGINE MANAGEMENT ECU (ENGINE)	H1
				See M010B ENGINE MANAGEMENT ECU (ENGINE)	H4
				See M010A ENGINE MANAGEMENT ECU (ENGINE)	L4
				See M010A ENGINE MANAGEMENT ECU (ENGINE)	M4
				See D004A FRONT/ENGINE COUPLING (FRONT)	A02
				See O007A OIL VAPOUR HEATING RESISTANCE (ENGINE)	2
				See O015 THROTTLE CASING HEATING RESISTANCE	2

2.0 16V · Climate control

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	6	N	X	See M010C ENGINE MANAGEMENT ECU (ENGINE)	H1
				See M010B ENGINE MANAGEMENT ECU (ENGINE)	H4
				See M010A ENGINE MANAGEMENT ECU (ENGINE)	L4
				See M010A ENGINE MANAGEMENT ECU (ENGINE)	M4
				See B001A JUNCTION UNIT (ENGINE)	5
				See D004A FRONT/ENGINE COUPLING (FRONT)	A02
				See J021 COMPRESSOR ENGAGEMENT ADDITIONAL REMOTE CONTROL SWITCH	2
				See L020 AIR CONDITIONING COMPRESSOR ENGAGEMENT ELECTRO-MAGNET	2
				See O007A OIL VAPOUR HEATING RESISTANCE (ENGINE)	2
				See O015 THROTTLE CASING HEATING RESISTANCE	2

2.0 16V

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	6	N	X	See M010C ENGINE MANAGEMENT ECU (ENGINE)	H1
				See M010B ENGINE MANAGEMENT ECU (ENGINE)	H4
				See M010A ENGINE MANAGEMENT ECU (ENGINE)	L4
				See M010A ENGINE MANAGEMENT ECU (ENGINE)	M4
				See D004A FRONT/ENGINE COUPLING (FRONT)	A02
				See O007A OIL VAPOUR HEATING RESISTANCE (ENGINE)	2
				See O015 THROTTLE CASING HEATING RESISTANCE	2

C040A – Engine

2.0 JTD 8V · Climate control

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	1,5	N	X	See L020 AIR CONDITIONING COMPRESSOR ENGAGEMENT ELECTRO-MAGNET	2
				See O007A OIL VAPOUR HEATING RESISTANCE (ENGINE)	2

2.0 JTD 8V

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	1,5	N		See O007A OIL VAPOUR HEATING RESISTANCE (ENGINE)	2

2.8 JTD 8V

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	1,5	N		O007A	2

2.8 JTD 8V · Automatic Transmission, EGR

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	1,5	N	X	O007A	2
				O007B	2

2.3 JTD 16V

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	1,5	N		See O007A OIL VAPOUR HEATING RESISTANCE (ENGINE)	2

C040B – Engine

2.0 JTD 8V

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	6	N	X	See D004A FRONT/ENGINE COUPLING (FRONT)	A02
				See M010A ENGINE MANAGEMENT ECU (ENGINE)	1
				See M010A ENGINE MANAGEMENT ECU (ENGINE)	2
				See M010A ENGINE MANAGEMENT ECU (ENGINE)	3
				See K041 AIR FLOW METER	3
				See M015A PLUG PREHEATING CONTROL UNIT (ENGINE)	1

2.8 JTD 8V

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	6	N	X	See D004A FRONT/ENGINE COUPLING (FRONT)	A02
				See M010A ENGINE MANAGEMENT ECU (ENGINE)	1
				See M010A ENGINE MANAGEMENT ECU (ENGINE)	2
				See M010A ENGINE MANAGEMENT ECU (ENGINE)	3

2.3 JTD 16V

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	6	N	X	See M015A PLUG PREHEATING CONTROL UNIT (ENGINE)	1
				See D004A FRONT/ENGINE COUPLING (FRONT)	A02
				See M010A ENGINE MANAGEMENT ECU (ENGINE)	1
				See M010A ENGINE MANAGEMENT ECU (ENGINE)	2
				See M010A ENGINE MANAGEMENT ECU (ENGINE)	3
