C031 right rear earth

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Earths › C031 right rear earth

Connectors and pin-outsC031 right rear earth

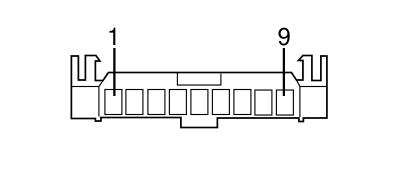

C031 RIGHT REAR EARTH

Combi, Minibus, Panorama, Van

Wiring	Colour
See 24 RIGHT LONGITUDINAL	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	NZ	X	See M084A PARKING SENSOR CONTROL UNIT (RIGHT LONGITUDINAL)	16
				See D171A RIGHT REAR/LUGGAGE COMPARTMENT COUPLING (REAR COURTESY LIGHT AND THIRD BRAKE LIGHT BRIDGE)	4
				See D150 RIGHT REAR/RIGHT SWING DOOR COUPLING	4
				See D171A RIGHT REAR/LUGGAGE COMPARTMENT COUPLING (REAR COURTESY LIGHT AND THIRD BRAKE LIGHT BRIDGE)	2
				See I021A SWITCH ON REAR DOOR (RIGHT LONGITUDINAL)	1
				See F031 RIGHT REAR LIGHT CLUSTER	1
				See M084A PARKING SENSOR CONTROL UNIT (RIGHT LONGITUDINAL)	8
				See P058 SIDE CURRENT SOCKET	3
