P058 side current socket

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Various consumers › P058 side current socket

Connectors and pin-outsP058 side current socket

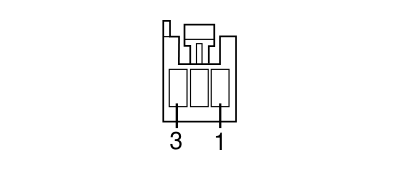

P058 SIDE CURRENT SOCKET

Combi, Panorama

Wiring	Colour
See 106 REAR SPEAKER AND CURRENT SOCKET BRIDGE	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	GN		See D178 LEFT REAR/REAR SPEAKER AND REAR CURRENT SOCKET BRIDGE COUPLING	5
2	1,5	RG		See D178 LEFT REAR/REAR SPEAKER AND REAR CURRENT SOCKET BRIDGE COUPLING	6
3	1,5	N	X	See M084A PARKING SENSOR CONTROL UNIT (RIGHT LONGITUDINAL)	16
				See D171A RIGHT REAR/LUGGAGE COMPARTMENT COUPLING (REAR COURTESY LIGHT AND THIRD BRAKE LIGHT BRIDGE)	4
				See D150 RIGHT REAR/RIGHT SWING DOOR COUPLING	4
				See D171A RIGHT REAR/LUGGAGE COMPARTMENT COUPLING (REAR COURTESY LIGHT AND THIRD BRAKE LIGHT BRIDGE)	2
				See I021A SWITCH ON REAR DOOR (RIGHT LONGITUDINAL)	1
				See F031 RIGHT REAR LIGHT CLUSTER	1
				See M084A PARKING SENSOR CONTROL UNIT (RIGHT LONGITUDINAL)	8
				See C031 RIGHT REAR EARTH	1
