P051 Current socket in dashboard

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Various consumers › P051 Current socket in dashboard

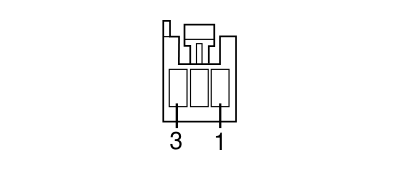

Connectors and pin-outsP051 Current socket in dashboard

P051 Current socket in dashboard

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	G		See D097C SHORT CIRCUITING COUPLING (DASHBOARD)	7
2	1,5	RN		See B002C JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	17
3	1,5	N	X	See H090B SWITCH CONTROL PANEL (DASHBOARD)	10
				See H005C STEERING COLUMN SWITCH UNIT (DASHBOARD)	5
				See E050A INSTRUMENT PANEL (DASHBOARD)	4
				See B002C JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	44
				See B002C JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	45
				See M120A Connect front panel (DASHBOARD)	A8
				See C015 DASHBOARD EARTH, DRIVER'S SIDE	1
				See D042	2
				See R010 MULTIPLE TESTER CONNECTION	4
				See R010 MULTIPLE TESTER CONNECTION	5
