D042 dashboard/courtesy lights coupling

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Intermediate couplings › D042 dashboard/courtesy lights coupling

Connectors and pin-outsD042 dashboard/courtesy lights coupling

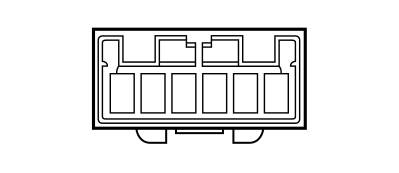

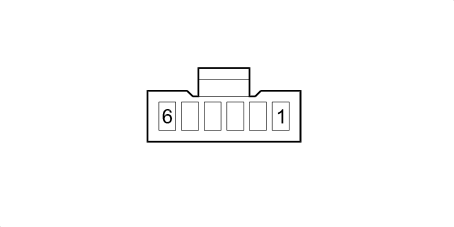

D042 DASHBOARD/COURTESY LIGHTS COUPLING

Wiring	Colour
See 102 GPS/GSM/RADIO AERIAL BRIDGE	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	RN		See G010 FRONT COURTESY LIGHT	2
2	0,5	N	X	See G010 FRONT COURTESY LIGHT	1
				See I105A SWITCH ON RIGHT SLIDING DOOR PILLAR (GPS/GSM/RADIO AERIAL BRIDGE)
				See I016A SWITCH ON LEFT FRONT DOOR (GPS/GSM/RADIO AERIAL BRIDGE)
				See I105A SWITCH ON RIGHT SLIDING DOOR PILLAR (GPS/GSM/RADIO AERIAL BRIDGE)
				See I017A SWITCH ON RIGHT FRONT DOOR (GPS/GSM/RADIO AERIAL BRIDGE)
3	0,5	SN	X	See D042	5
				See I105B SWITCH ON RIGHT SLIDING DOOR PILLAR (GPS/GSM/RADIO AERIAL BRIDGE)
3	0,5	SN		See I105B SWITCH ON RIGHT SLIDING DOOR PILLAR (GPS/GSM/RADIO AERIAL BRIDGE)
4	0,5	NZ	X	See G010 FRONT COURTESY LIGHT	3
				See D042	6
				See I017B SWITCH ON RIGHT FRONT DOOR (GPS/GSM/RADIO AERIAL BRIDGE)
				See I016B SWITCH ON LEFT FRONT DOOR (GPS/GSM/RADIO AERIAL BRIDGE)
5	0,5	SN	X	See D042	3
				See I105B SWITCH ON RIGHT SLIDING DOOR PILLAR (GPS/GSM/RADIO AERIAL BRIDGE)
6	0,5	Z	X	See G010 FRONT COURTESY LIGHT	3
				See D042	4
				See I017B SWITCH ON RIGHT FRONT DOOR (GPS/GSM/RADIO AERIAL BRIDGE)
				See I016B SWITCH ON LEFT FRONT DOOR (GPS/GSM/RADIO AERIAL BRIDGE)

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	RN		See H090B SWITCH CONTROL PANEL (DASHBOARD)	8
2	0,5	N	X	See H090B SWITCH CONTROL PANEL (DASHBOARD)	10
				See H005C STEERING COLUMN SWITCH UNIT (DASHBOARD)	5
				See E050A INSTRUMENT PANEL (DASHBOARD)	4
				See B002C JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	44
				See B002C JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	45
				See M120A Connect front panel (DASHBOARD)	A8
				See P051 Current socket in dashboard	3
				See C015 DASHBOARD EARTH, DRIVER'S SIDE	1
				See R010 MULTIPLE TESTER CONNECTION	4
				See R010 MULTIPLE TESTER CONNECTION	5
3	0,5	SN		See H090D SWITCH CONTROL PANEL (DASHBOARD)	11
4	0,5	NZ		See H090D SWITCH CONTROL PANEL (DASHBOARD)	12
5	0,5	S		See E050C INSTRUMENT PANEL (DASHBOARD)	3
6	0,5	Z		See E050C INSTRUMENT PANEL (DASHBOARD)	1
