G010 front courtesy light

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Interior lights › G010 front courtesy light

Connectors and pin-outsG010 front courtesy light

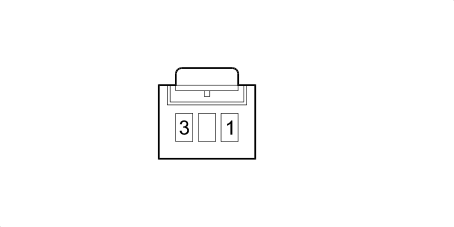

G010 FRONT COURTESY LIGHT

Wiring	Colour
See 102 GPS/GSM/RADIO AERIAL BRIDGE	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	N	X	See D042	2
				See I105A SWITCH ON RIGHT SLIDING DOOR PILLAR (GPS/GSM/RADIO AERIAL BRIDGE)
				See I016A SWITCH ON LEFT FRONT DOOR (GPS/GSM/RADIO AERIAL BRIDGE)
				See I105A SWITCH ON RIGHT SLIDING DOOR PILLAR (GPS/GSM/RADIO AERIAL BRIDGE)
				See I017A SWITCH ON RIGHT FRONT DOOR (GPS/GSM/RADIO AERIAL BRIDGE)
2	0,5	RN		See D042	1
3	0,5	NZ	X	See D042	6
				See D042	4
				See I017B SWITCH ON RIGHT FRONT DOOR (GPS/GSM/RADIO AERIAL BRIDGE)
				See I016B SWITCH ON LEFT FRONT DOOR (GPS/GSM/RADIO AERIAL BRIDGE)

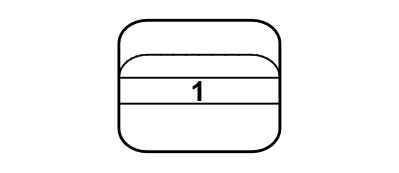

G010A – Passenger area front courtesy light bridge

Minibus

Wiring	Colour
See 107 PASSENGER AREA FRONT COURTESY LIGHT BRIDGE	ROSSO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	R	X	See D174C OPTIONAL DASHBOARD/PASSENGER COURTESY LIGHT COUPLING (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	2
				See G010B FRONT COURTESY LIGHT (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	1
				See G011A (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	1
				See G011B (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	1
				See G012A PASSENGER AREA REAR COURTESY LIGHT (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	1
				See G012B PASSENGER AREA REAR COURTESY LIGHT (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	1

G010B – Passenger area front courtesy light bridge

Minibus

Wiring	Colour
See 107 PASSENGER AREA FRONT COURTESY LIGHT BRIDGE	ROSSO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	R	X	See D174C OPTIONAL DASHBOARD/PASSENGER COURTESY LIGHT COUPLING (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	2
				See G010A FRONT COURTESY LIGHT (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	1
				See G011A (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	1
				See G011B (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	1
				See G012A PASSENGER AREA REAR COURTESY LIGHT (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	1
				See G012B PASSENGER AREA REAR COURTESY LIGHT (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	1

G010C – Passenger area front courtesy light bridge

Minibus

Wiring	Colour
See 107 PASSENGER AREA FRONT COURTESY LIGHT BRIDGE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	LR	X	See G011C (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	1
				See G011C (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	1
				See D174C OPTIONAL DASHBOARD/PASSENGER COURTESY LIGHT COUPLING (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	1

G010D – Passenger area front courtesy light bridge

Minibus

Wiring	Colour
See 107 PASSENGER AREA FRONT COURTESY LIGHT BRIDGE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	N	X	See D174C OPTIONAL DASHBOARD/PASSENGER COURTESY LIGHT COUPLING (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	3
				See G012D PASSENGER AREA REAR COURTESY LIGHT (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	1
				See G011D (PASSENGER AREA FRONT COURTESY LIGHT BRIDGE)	1
