G041 tailgate courtesy light

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Interior lights › G041 tailgate courtesy light

Connectors and pin-outsG041 tailgate courtesy light

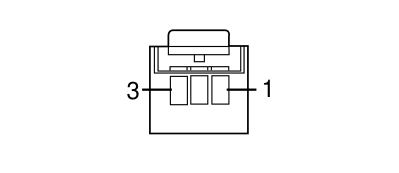

G041 TAILGATE COURTESY LIGHT

Combi, Minibus, Panorama, Van

Wiring	Colour
See 108 REAR COURTESY LIGHT AND THIRD BRAKE LIGHT BRIDGE	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	VN		See D171A RIGHT REAR/LUGGAGE COMPARTMENT COUPLING (REAR COURTESY LIGHT AND THIRD BRAKE LIGHT BRIDGE)	5
2	0,5	LR		See D171A RIGHT REAR/LUGGAGE COMPARTMENT COUPLING (REAR COURTESY LIGHT AND THIRD BRAKE LIGHT BRIDGE)	3
3	0,5	N		See D171A RIGHT REAR/LUGGAGE COMPARTMENT COUPLING (REAR COURTESY LIGHT AND THIRD BRAKE LIGHT BRIDGE)	4
