Connectors and pin-outs D004 front/engine coupling
D004 FRONT/ENGINE COUPLING

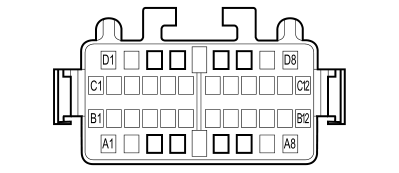

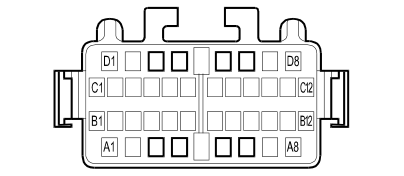

D004A – Front
2.3 JTD 16V, 2.8 JTD 8V · Green filter
Pin Cable Destination Sec. Colour Node Connect. Pin A01 0,35 NV See D001A FRONT/DASHBOARD COUPLING (FRONT) C08 A02 0,5 N See M020A CODE CONTROL UNIT (FRONT) 4 A03 2,5 R See O020A Diesel heating resistance (FRONT) 3 A04 0,5 HV See O020A Diesel heating resistance (FRONT) 1 A05 0,5 NB See O020A Diesel heating resistance (FRONT) 2 A06 0,75 AN See O020B Diesel heating resistance (FRONT) 3 A07 0,35 BL See D001A FRONT/DASHBOARD COUPLING (FRONT) C06 A08 0,35 HN See D001B FRONT/DASHBOARD COUPLING (FRONT) 1 B01 0,35 SV See D018B ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT) 1 B02 0,35 RV See D018B ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT) 2 B03 0,35 GN See D018B ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT) 5 B04 0,35 BZ See D018B ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT) 6 B05 0,5 MG X See M050 ABS CONTROL UNIT 28 See O005 LOAD RESISTANCE ON FRONT CABLE 2 B06 0,5 BV X See M050 ABS CONTROL UNIT 30 See O005 LOAD RESISTANCE ON FRONT CABLE 1 B07 0,35 HV See D001A FRONT/DASHBOARD COUPLING (FRONT) B06 B08 0,35 AS See D001A FRONT/DASHBOARD COUPLING (FRONT) C05 B09 0,35 SR See D001B FRONT/DASHBOARD COUPLING (FRONT) 2 B10 0,5 RN See D001A FRONT/DASHBOARD COUPLING (FRONT) B01 B11 0,5 B X See D145 FRONT/CILC (FUEL LEVEL GAUGE CIRCUIT) COUPLING 3 See I050 INERTIA SWITCH 3 B12 0,35 GR See D001B FRONT/DASHBOARD COUPLING (FRONT) 3 C01 0,35 NS See D001B FRONT/DASHBOARD COUPLING (FRONT) 18 C02 0,5 NZ See K055 ACCELERATOR PEDAL POTENTIOMETER 5 C03 0,5 MN See K055 ACCELERATOR PEDAL POTENTIOMETER 6 C04 0,5 BC See K055 ACCELERATOR PEDAL POTENTIOMETER 1 C05 0,5 MB See K055 ACCELERATOR PEDAL POTENTIOMETER 3 C06 0,5 AN See K055 ACCELERATOR PEDAL POTENTIOMETER 4 C07 0,5 HM See K055 ACCELERATOR PEDAL POTENTIOMETER 2 C08 0,35 NR See D001A FRONT/DASHBOARD COUPLING (FRONT) C07 C09 0,35 LG See M020 CODE CONTROL UNIT 6 C10 0,35 BN See K010 4 STAGE PRESSURE SWITCH 5 C11 0,35 AB See K010 4 STAGE PRESSURE SWITCH 3 C12 0,35 BV See K010 4 STAGE PRESSURE SWITCH 1 D01 0,35 NZ See D001A FRONT/DASHBOARD COUPLING (FRONT) C10 D02 0,35 BH See D001A FRONT/DASHBOARD COUPLING (FRONT) B09 D03 0,35 BM See D001A FRONT/DASHBOARD COUPLING (FRONT) B10 D04 0,5 L See B001C JUNCTION UNIT (FRONT) 17 D06 0,5 HG X See D001A FRONT/DASHBOARD COUPLING (FRONT) B08 See D007A ALTERNATOR COUPLING (FRONT) 2 D07 0,5 HB See I031 CLUTCH PEDAL SWITCH 4 D08 0,35 BG See D001A FRONT/DASHBOARD COUPLING (FRONT) C04
2.8 JTD 8V · Automatic Transmission
Pin Cable Destination Sec. Colour Node Connect. Pin A01 0,35 NV See D001A FRONT/DASHBOARD COUPLING (FRONT) C08 A02 0,5 N See M020A CODE CONTROL UNIT (FRONT) 4 A03 2,5 R See O020 Diesel heating resistance 2 A04 0,5 HV See K081 FUEL TEMPERATURE SENSOR 1 A05 0,5 NB See K081 FUEL TEMPERATURE SENSOR 2 A06 0,75 AN See K031 WATER IN DIESEL FILTER SENSOR 3 A07 0,35 BL See D001A FRONT/DASHBOARD COUPLING (FRONT) C06 A08 0,35 HN See D001B FRONT/DASHBOARD COUPLING (FRONT) 1 B01 0,35 SV See D018B ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT) 1 B02 0,35 RV See D018B ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT) 2 B03 0,35 GN See D018B ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT) 5 B04 0,35 BZ See D018B ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT) 6 B05 0,5 MG See H037 GEAR CONTROLS 5 B05 0,5 MG See D186A FRONT/ABS COUPLING (ABS) A5 B06 0,5 BV See H037 GEAR CONTROLS 4 B06 0,5 BV See D186A FRONT/ABS COUPLING (ABS) A6 B08 0,35 AS See D001A FRONT/DASHBOARD COUPLING (FRONT) C05 B09 0,35 SR See D001B FRONT/DASHBOARD COUPLING (FRONT) 2 B10 0,5 RN See D001A FRONT/DASHBOARD COUPLING (FRONT) B01 B12 0,35 GR See D001B FRONT/DASHBOARD COUPLING (FRONT) 3 C01 0,35 NS See D001B FRONT/DASHBOARD COUPLING (FRONT) 18 C02 0,5 NZ See K055 ACCELERATOR PEDAL POTENTIOMETER 5 C03 0,5 MN See K055 ACCELERATOR PEDAL POTENTIOMETER 6 C04 0,5 BC See K055 ACCELERATOR PEDAL POTENTIOMETER 1 C05 0,5 MB See K055 ACCELERATOR PEDAL POTENTIOMETER 3 C06 0,5 AN See K055 ACCELERATOR PEDAL POTENTIOMETER 4 C07 0,5 HM See K055 ACCELERATOR PEDAL POTENTIOMETER 2 C08 0,35 NR See D001A FRONT/DASHBOARD COUPLING (FRONT) C07 C09 0,35 LG See M020A CODE CONTROL UNIT (FRONT) 6 D01 0,35 NZ See D001A FRONT/DASHBOARD COUPLING (FRONT) C10 D02 0,35 BH See D001A FRONT/DASHBOARD COUPLING (FRONT) B09 D03 0,35 BM See D001A FRONT/DASHBOARD COUPLING (FRONT) B10 D06 0,5 HG X See D007A ALTERNATOR COUPLING (FRONT) 2 See D001A FRONT/DASHBOARD COUPLING (FRONT) B08 D08 0,35 BG X See D001A FRONT/DASHBOARD COUPLING (FRONT) C04 See M055 AUTOMATIC TRANSMISSION CONTROL UNIT 88
2.8 JTD 8V · Automatic Transmission, Climate control
Pin Cable Destination Sec. Colour Node Connect. Pin A01 0,35 NV See D001A FRONT/DASHBOARD COUPLING (FRONT) C08 A02 0,5 N See M020 CODE CONTROL UNIT 4 A03 2,5 R See O020 Diesel heating resistance 2 A04 0,5 HV See K081 FUEL TEMPERATURE SENSOR 1 A05 0,5 NB See K081 FUEL TEMPERATURE SENSOR 2 A06 0,75 AN See K031 WATER IN DIESEL FILTER SENSOR 3 A07 0,35 BL See D001A FRONT/DASHBOARD COUPLING (FRONT) C06 A08 0,35 HN See D001B FRONT/DASHBOARD COUPLING (FRONT) 1 B01 0,35 SV See D018B ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT) 1 B02 0,35 RV See D018B ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT) 2 B03 0,35 GN See D018B ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT) 5 B04 0,35 BZ See D018B ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT) 6 B05 0,35 B-T16 See D186C FRONT/ABS COUPLING (ABS) 3 B06 0,35 V-T16 See D186C FRONT/ABS COUPLING (ABS) 4 B08 0,35 AS See D001A FRONT/DASHBOARD COUPLING (FRONT) C05 B09 0,35 SR See D001B FRONT/DASHBOARD COUPLING (FRONT) 2 B10 0,5 RN See D001A FRONT/DASHBOARD COUPLING (FRONT) B01 B12 0,35 GR See D001B FRONT/DASHBOARD COUPLING (FRONT) 3 C01 0,35 NS See D001B FRONT/DASHBOARD COUPLING (FRONT) 18 C02 0,5 NZ See K055 ACCELERATOR PEDAL POTENTIOMETER 5 C03 0,5 MN See K055 ACCELERATOR PEDAL POTENTIOMETER 6 C04 0,5 BC See K055 ACCELERATOR PEDAL POTENTIOMETER 1 C05 0,5 MB See K055 ACCELERATOR PEDAL POTENTIOMETER 3 C06 0,5 AN See K055 ACCELERATOR PEDAL POTENTIOMETER 4 C07 0,5 HM See K055 ACCELERATOR PEDAL POTENTIOMETER 2 C08 0,35 NR See D001A FRONT/DASHBOARD COUPLING (FRONT) C07 C09 0,35 LG See M020 CODE CONTROL UNIT 6 C10 0,35 BN See K010 4 STAGE PRESSURE SWITCH 5 C11 0,35 AB See K010 4 STAGE PRESSURE SWITCH 3 C12 0,35 BV See K010 4 STAGE PRESSURE SWITCH 1 D01 0,35 NZ See D001A FRONT/DASHBOARD COUPLING (FRONT) C10 D02 0,35 BH See D001A FRONT/DASHBOARD COUPLING (FRONT) B09 D03 0,35 BM See D001A FRONT/DASHBOARD COUPLING (FRONT) B10 D05 0,5 G See D009B FRONT/RADIATOR COUPLING (FRONT) C D06 0,5 HG X See D001A FRONT/DASHBOARD COUPLING (FRONT) B08 See D007A ALTERNATOR COUPLING (FRONT) 2 D08 0,35 BG X See M055 AUTOMATIC TRANSMISSION CONTROL UNIT 88 D001A C04
2.3 JTD 16V, 2.8 JTD 8V · Climate control
2.3 JTD 16V, 2.8 JTD 8V
Pin Cable Destination Sec. Colour Node Connect. Pin A01 0,35 NV See D001A FRONT/DASHBOARD COUPLING (FRONT) C08 A02 0,5 N See M020A CODE CONTROL UNIT (FRONT) 4 A03 0,5 R See O020 Diesel heating resistance 2 A04 0,5 HV See K081 FUEL TEMPERATURE SENSOR 1 A05 0,5 NB See K081 FUEL TEMPERATURE SENSOR 2 A06 0,75 AN See K031 WATER IN DIESEL FILTER SENSOR 3 A07 0,35 BL See D001A FRONT/DASHBOARD COUPLING (FRONT) C06 A08 0,35 HN See D001B FRONT/DASHBOARD COUPLING (FRONT) 1 B01 0,35 SV See D018B ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT) 1 B02 0,35 RV See D018B ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT) 2 B03 0,35 GN See D018B ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT) 5 B04 0,35 BZ See D018B ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT) 6 B05 0,5 MG X See M050 ABS CONTROL UNIT 28 See O005 LOAD RESISTANCE ON FRONT CABLE 2 B06 0,5 BV X See M050 ABS CONTROL UNIT 30 See O005 LOAD RESISTANCE ON FRONT CABLE 1 B07 0,35 HV See D001A FRONT/DASHBOARD COUPLING (FRONT) B06 B08 0,35 AS See D001A FRONT/DASHBOARD COUPLING (FRONT) C05 B09 0,35 SR See D001B FRONT/DASHBOARD COUPLING (FRONT) 2 B10 0,5 RN See D001A FRONT/DASHBOARD COUPLING (FRONT) B01 B11 0,5 B See D145 FRONT/CILC (FUEL LEVEL GAUGE CIRCUIT) COUPLING 3 B12 0,35 GR See D001B FRONT/DASHBOARD COUPLING (FRONT) 3 C01 0,35 NS See D001B FRONT/DASHBOARD COUPLING (FRONT) 18 C02 0,5 NZ See K055 ACCELERATOR PEDAL POTENTIOMETER 5 C03 0,5 MN See K055 ACCELERATOR PEDAL POTENTIOMETER 6 C04 0,5 BC See K055 ACCELERATOR PEDAL POTENTIOMETER 1 C05 0,5 MB See K055 ACCELERATOR PEDAL POTENTIOMETER 3 C06 0,5 AN See K055 ACCELERATOR PEDAL POTENTIOMETER 4 C07 0,5 HM See K055 ACCELERATOR PEDAL POTENTIOMETER 2 C08 0,35 NR See D001A FRONT/DASHBOARD COUPLING (FRONT) C07 C09 0,35 LG See M020 CODE CONTROL UNIT 6 D01 0,35 NZ See D001A FRONT/DASHBOARD COUPLING (FRONT) C10 D02 0,35 BH See D001A FRONT/DASHBOARD COUPLING (FRONT) B09 D03 0,35 BM See D001A FRONT/DASHBOARD COUPLING (FRONT) B10 D04 0,5 L See B001C JUNCTION UNIT (FRONT) 17 D06 0,5 HG X See D001A FRONT/DASHBOARD COUPLING (FRONT) B08 See D007A ALTERNATOR COUPLING (FRONT) 2 D07 0,5 HB See I031 CLUTCH PEDAL SWITCH 4 D08 0,35 BG See D001A FRONT/DASHBOARD COUPLING (FRONT) C04
2.0 JTD 8V · Green filter
Pin Cable Destination Sec. Colour Node Connect. Pin
2.0 JTD 8V · Climate control
2.0 JTD 8V
Pin Cable Destination Sec. Colour Node Connect. Pin
2.0 16V · Climate control
Pin Cable Destination Sec. Colour Node Connect. Pin
2.0 16V
Pin Cable Destination Sec. Colour Node Connect. Pin

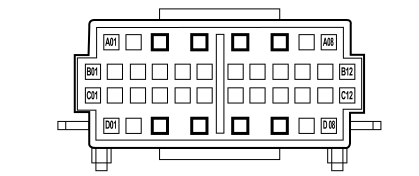

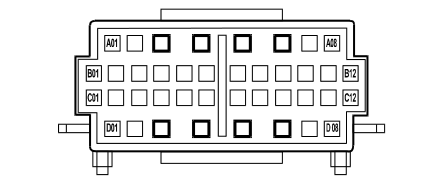

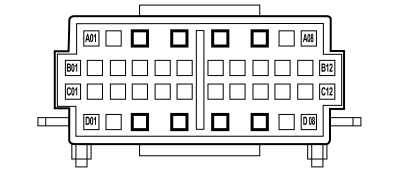

D004A – Engine
2.8 JTD 8V · POWER Setup, Thermal starter
Pin Cable Destination Sec. Colour Node Connect. Pin A01 0,5 NV See M010A ENGINE MANAGEMENT ECU (ENGINE) 47 A02 0,5 N X See C040B ENGINE EARTH (ENGINE) 1 See M010A ENGINE MANAGEMENT ECU (ENGINE) 1 See M010A ENGINE MANAGEMENT ECU (ENGINE) 2 See M010A ENGINE MANAGEMENT ECU (ENGINE) 3 A03 25 R See B001A JUNCTION UNIT (ENGINE) 2 A04 0,5 MZ See M010B ENGINE MANAGEMENT ECU (ENGINE) 82 A05 0,5 NB See M010B ENGINE MANAGEMENT ECU (ENGINE) 83 A06 0.75 AN X See B001A JUNCTION UNIT (ENGINE) 1 See B001A JUNCTION UNIT (ENGINE) 7 See L036 TURBINE VARIABLE GEOMETRY CONTROL SOLENOID VALVE 2 See K084 SPEEDOMETER SENSOR 1 See L064 FLOW MODIFYING SOLENOID VALVE 1 See O007 OIL VAPOUR HEATING RESISTANCE 1 See B001A JUNCTION UNIT (ENGINE) 6 See B001A JUNCTION UNIT (ENGINE) 3 A07 0.5 BL See M010A ENGINE MANAGEMENT ECU (ENGINE) 14 A08 0,5 HN See M010A ENGINE MANAGEMENT ECU (ENGINE) 54 B01 0,5 SG See M010A ENGINE MANAGEMENT ECU (ENGINE) 55 B02 0,5 RV See M010A ENGINE MANAGEMENT ECU (ENGINE) 57 B03 0,5 GN M010A, 56 B04 0,5 NZ See M010A ENGINE MANAGEMENT ECU (ENGINE) 53 B05 0,5 B See M010A ENGINE MANAGEMENT ECU (ENGINE) 9 B06 0,5 V See M010A ENGINE MANAGEMENT ECU (ENGINE) 10 B07 0,5 HV See K084 SPEEDOMETER SENSOR 3 B08 0,5 CA See M010A ENGINE MANAGEMENT ECU (ENGINE) 49 B09 0,5 SB See M010A ENGINE MANAGEMENT ECU (ENGINE) 23 B10 0,5 RN See M010A ENGINE MANAGEMENT ECU (ENGINE) 59 B12 0,5 GV See K032 ENGINE OIL LEVEL SENSOR 1 C01 0,5 MC See K032 ENGINE OIL LEVEL SENSOR 2 C02 0,5 ZB See M010A ENGINE MANAGEMENT ECU (ENGINE) 79 C03 0,5 MN See M010A ENGINE MANAGEMENT ECU (ENGINE) 80 C04 0,5 BC See M010A ENGINE MANAGEMENT ECU (ENGINE) 81 C05 0,5 MB See M010A ENGINE MANAGEMENT ECU (ENGINE) 76 C06 0,5 AN See M010A ENGINE MANAGEMENT ECU (ENGINE) 77 C07 0,5 HM See M010A ENGINE MANAGEMENT ECU (ENGINE) 78 C08 0,5 NL See M010A ENGINE MANAGEMENT ECU (ENGINE) 21 C09 0,5 LG See M010A ENGINE MANAGEMENT ECU (ENGINE) 11 C10 0,5 BN See M010A ENGINE MANAGEMENT ECU (ENGINE) 60 C11 0,5 AB See M010A ENGINE MANAGEMENT ECU (ENGINE) 51 C12 0,5 BV See M010A ENGINE MANAGEMENT ECU (ENGINE) 52 D01 0,5 ZG See K084 SPEEDOMETER SENSOR 2 D02 0,5 HB See K083 FUEL PRESSURE SENSOR 1 D03 0,5 MV See K083 FUEL PRESSURE SENSOR 2 D05 0,5 C X See M010A ENGINE MANAGEMENT ECU (ENGINE) 19 See B001A JUNCTION UNIT (ENGINE) 21 D07 0,5 HL See M010A ENGINE MANAGEMENT ECU (ENGINE) 61 D08 0,5 BG See M010A ENGINE MANAGEMENT ECU (ENGINE) 48
2.8 JTD 8V · Heat - Flange, POWER Setup
Pin Cable Destination Sec. Colour Node Connect. Pin A01 0,5 NV See M010A ENGINE MANAGEMENT ECU (ENGINE) 47 A02 0,5 N X See C040B ENGINE EARTH (ENGINE) 1 See M010A ENGINE MANAGEMENT ECU (ENGINE) 1 See M010A ENGINE MANAGEMENT ECU (ENGINE) 2 See M010A ENGINE MANAGEMENT ECU (ENGINE) 3 A03 25 R See B001A JUNCTION UNIT (ENGINE) 2 A04 0,5 MZ See M010B ENGINE MANAGEMENT ECU (ENGINE) 82 A05 0,5 NB See M010B ENGINE MANAGEMENT ECU (ENGINE) 83 A06 0.75 AN X See B001A JUNCTION UNIT (ENGINE) 6 See B001A JUNCTION UNIT (ENGINE) 7 See L036 TURBINE VARIABLE GEOMETRY CONTROL SOLENOID VALVE 2 See K084 SPEEDOMETER SENSOR 1 See L064 FLOW MODIFYING SOLENOID VALVE 1 See O007 OIL VAPOUR HEATING RESISTANCE 1 See J130C HEAT - FLANGE RELAY (ENGINE) 2 A07 0.5 BL See M010A ENGINE MANAGEMENT ECU (ENGINE) 14 A08 0,5 HN See M010A ENGINE MANAGEMENT ECU (ENGINE) 54 B01 0,5 SG See M010A ENGINE MANAGEMENT ECU (ENGINE) 55 B02 0,5 RV See M010A ENGINE MANAGEMENT ECU (ENGINE) 57 B03 0,5 GN M010A, 56 B04 0,5 NZ See M010A ENGINE MANAGEMENT ECU (ENGINE) 53 B05 0,5 B See M010A ENGINE MANAGEMENT ECU (ENGINE) 9 B06 0,5 V See M010A ENGINE MANAGEMENT ECU (ENGINE) 10 B07 0,5 HV See K084 SPEEDOMETER SENSOR 3 B08 0,5 CA See M010A ENGINE MANAGEMENT ECU (ENGINE) 49 B09 0,5 SB See M010A ENGINE MANAGEMENT ECU (ENGINE) 23 B10 0,5 RN See M010A ENGINE MANAGEMENT ECU (ENGINE) 59 B12 0,5 GV See K032 ENGINE OIL LEVEL SENSOR 1 C01 0,5 MC See K032 ENGINE OIL LEVEL SENSOR 2 C02 0,5 ZB See M010A ENGINE MANAGEMENT ECU (ENGINE) 79 C03 0,5 MN See M010A ENGINE MANAGEMENT ECU (ENGINE) 80 C04 0,5 BC See M010A ENGINE MANAGEMENT ECU (ENGINE) 81 C05 0,5 MB See M010A ENGINE MANAGEMENT ECU (ENGINE) 76 C06 0,5 AN See M010A ENGINE MANAGEMENT ECU (ENGINE) 77 C07 0,5 HM See M010A ENGINE MANAGEMENT ECU (ENGINE) 78 C08 0,5 NL See M010A ENGINE MANAGEMENT ECU (ENGINE) 21 C09 0,5 LG See M010A ENGINE MANAGEMENT ECU (ENGINE) 11 C10 0,5 BN See M010A ENGINE MANAGEMENT ECU (ENGINE) 60 C11 0,5 AB See M010A ENGINE MANAGEMENT ECU (ENGINE) 51 C12 0,5 BV See M010A ENGINE MANAGEMENT ECU (ENGINE) 52 D01 0,5 ZG See K084 SPEEDOMETER SENSOR 2 D02 0,5 HB See K083 FUEL PRESSURE SENSOR 1 D03 0,5 MV See K083 FUEL PRESSURE SENSOR 2 D05 0,5 C X See M010A ENGINE MANAGEMENT ECU (ENGINE) 19 See B001A JUNCTION UNIT (ENGINE) 21 D07 0,5 HL See M010A ENGINE MANAGEMENT ECU (ENGINE) 61 D08 0,5 BG See M010A ENGINE MANAGEMENT ECU (ENGINE) 48
2.0 16V · Climate control, Methane
Pin Cable Destination Sec. Colour Node Connect. Pin A01 0,5 HR See M010A ENGINE MANAGEMENT ECU (ENGINE) J2 A02 0,5 N X See M010C ENGINE MANAGEMENT ECU (ENGINE) H1 See M010B ENGINE MANAGEMENT ECU (ENGINE) H4 See M010A ENGINE MANAGEMENT ECU (ENGINE) L4 See M010A ENGINE MANAGEMENT ECU (ENGINE) M4 See C040 ENGINE EARTH See L020 AIR CONDITIONING COMPRESSOR ENGAGEMENT ELECTRO-MAGNET 2 See O007A OIL VAPOUR HEATING RESISTANCE (ENGINE) 2 See O015 THROTTLE CASING HEATING RESISTANCE 2 See J020 AIR CONDITIONING COMPRESSOR ENGAGEMENT RELAY 5 A03 1,5 RN See D193 METHANE / INJECTION COUPLING B1 A04 2,5 M See D193 METHANE / INJECTION COUPLING A1 A05 0,5 GV See M010A ENGINE MANAGEMENT ECU (ENGINE) D3 See D004A FRONT/ENGINE COUPLING (FRONT) C10 See J020 AIR CONDITIONING COMPRESSOR ENGAGEMENT RELAY 3 A06 2,5 BN See D193 METHANE / INJECTION COUPLING A8 A07 0,5 BL See M010A ENGINE MANAGEMENT ECU (ENGINE) M3 B07 0,5 A See K084 SPEEDOMETER SENSOR 3 B08 0,5 AV See M010A ENGINE MANAGEMENT ECU (ENGINE) G2 B11 0,5 L See A010B ALTERNATOR (ENGINE) B12 0,5 GV See K032 ENGINE OIL LEVEL SENSOR 1 C01 0,5 MC See K032 ENGINE OIL LEVEL SENSOR 3 C03 0,5 ZB See D193 METHANE / INJECTION COUPLING B8 C04 0,5 NB See D193 METHANE / INJECTION COUPLING C5 C08 0,5 AN See M010A ENGINE MANAGEMENT ECU (ENGINE) C4 C09 0,5 HV See M010A ENGINE MANAGEMENT ECU (ENGINE) F3 C10 0,5 GV X See M010A ENGINE MANAGEMENT ECU (ENGINE) D3 See J020 AIR CONDITIONING COMPRESSOR ENGAGEMENT RELAY 3 See D004A FRONT/ENGINE COUPLING (FRONT) A05 C11 0,5 AB See M010A ENGINE MANAGEMENT ECU (ENGINE) E2 D01 0,5 NZ See K084 SPEEDOMETER SENSOR 2 D02 0,5 V See M010A ENGINE MANAGEMENT ECU (ENGINE) K3 D03 0,5 GV See M010A ENGINE MANAGEMENT ECU (ENGINE) D3 See D004A FRONT/ENGINE COUPLING (FRONT) A05 See J020 AIR CONDITIONING COMPRESSOR ENGAGEMENT RELAY 3 D04 2,5 BN See J027 PETROL SUPPLY CUT OUT RELAY 5 D05 0,5 AR X See M010A ENGINE MANAGEMENT ECU (ENGINE) J4 See B001A JUNCTION UNIT (ENGINE) 21 D06 0,5 C See K030 LOW ENGINE OIL PRESSURE SENSOR (SWITCH) 1 D08 0,5 BR X See M010A ENGINE MANAGEMENT ECU (ENGINE) M2 0,5 BR See D193 METHANE / INJECTION COUPLING C2
2.0 16V · Methane
Pin Cable Destination Sec. Colour Node Connect. Pin A01 0,5 HR See M010A ENGINE MANAGEMENT ECU (ENGINE) J2 A02 0,5 N X See M010C ENGINE MANAGEMENT ECU (ENGINE) H1 See M010B ENGINE MANAGEMENT ECU (ENGINE) H4 See M010A ENGINE MANAGEMENT ECU (ENGINE) L4 See M010A ENGINE MANAGEMENT ECU (ENGINE) M4 See O007A OIL VAPOUR HEATING RESISTANCE (ENGINE) 2 See O015 THROTTLE CASING HEATING RESISTANCE 2 See C040 ENGINE EARTH A03 1,5 RN See D193 METHANE / INJECTION COUPLING B1 A04 2,5 M See D193 METHANE / INJECTION COUPLING A1 A05 0,5 GV See M010A ENGINE MANAGEMENT ECU (ENGINE) D3 See D004A FRONT/ENGINE COUPLING (FRONT) C10 A06 2,5 BN See D193 METHANE / INJECTION COUPLING A8 A07 0,5 BL See M010A ENGINE MANAGEMENT ECU (ENGINE) M3 B07 0,5 A See K084 SPEEDOMETER SENSOR 3 B08 0,5 AV See M010A ENGINE MANAGEMENT ECU (ENGINE) G2 B11 0,5 L See A010B ALTERNATOR (ENGINE) B12 0,5 GV See K032 ENGINE OIL LEVEL SENSOR 1 C01 0,5 MC See K032 ENGINE OIL LEVEL SENSOR 3 C03 0,5 ZB See D193 METHANE / INJECTION COUPLING B8 C04 0,5 NB See D193 METHANE / INJECTION COUPLING C5 C08 0,5 AN See M010A ENGINE MANAGEMENT ECU (ENGINE) C4 C09 0,5 HV See M010A ENGINE MANAGEMENT ECU (ENGINE) F3 C10 0,5 GV X See M010A ENGINE MANAGEMENT ECU (ENGINE) D3 See D004A FRONT/ENGINE COUPLING (FRONT) A05 C11 0,5 AB See M010A ENGINE MANAGEMENT ECU (ENGINE) E2 D01 0,5 NZ See K084 SPEEDOMETER SENSOR 2 D02 0,5 V See M010A ENGINE MANAGEMENT ECU (ENGINE) K3 D03 0,5 GV See M010A ENGINE MANAGEMENT ECU (ENGINE) D3 See D004A FRONT/ENGINE COUPLING (FRONT) A05 See J020 AIR CONDITIONING COMPRESSOR ENGAGEMENT RELAY 3 D04 2,5 BN See J027 PETROL SUPPLY CUT OUT RELAY 5 D06 0,5 C See K030 LOW ENGINE OIL PRESSURE SENSOR (SWITCH) 1 D08 0,5 BR X See M010A ENGINE MANAGEMENT ECU (ENGINE) M2 0,5 BR See D193 METHANE / INJECTION COUPLING C2
2.0 16V · Climate control
Pin Cable Destination Sec. Colour Node Connect. Pin A01 0,5 HR See M010A ENGINE MANAGEMENT ECU (ENGINE) J2 A02 0,5 N X See M010C ENGINE MANAGEMENT ECU (ENGINE) H1 See M010B ENGINE MANAGEMENT ECU (ENGINE) H4 See M010A ENGINE MANAGEMENT ECU (ENGINE) L4 See M010A ENGINE MANAGEMENT ECU (ENGINE) M4 See B001A JUNCTION UNIT (ENGINE) 5 See J021 COMPRESSOR ENGAGEMENT ADDITIONAL REMOTE CONTROL SWITCH 2 See L020 AIR CONDITIONING COMPRESSOR ENGAGEMENT ELECTRO-MAGNET 2 See O007A OIL VAPOUR HEATING RESISTANCE (ENGINE) 2 See C040 ENGINE EARTH See O015 THROTTLE CASING HEATING RESISTANCE 2 B07 0,5 A See K084 SPEEDOMETER SENSOR 3 B08 0,5 AV See M010A ENGINE MANAGEMENT ECU (ENGINE) G2 B11 0,5 BL See M010A ENGINE MANAGEMENT ECU (ENGINE) M3 B12 0,5 GV See K032 ENGINE OIL LEVEL SENSOR 1 C01 0,5 MC See K032 ENGINE OIL LEVEL SENSOR 3 C08 0,5 AN See M010A ENGINE MANAGEMENT ECU (ENGINE) C4 C09 0,5 HV See M010A ENGINE MANAGEMENT ECU (ENGINE) F3 C10 0,5 GV X See M010A ENGINE MANAGEMENT ECU (ENGINE) D3 See J020 AIR CONDITIONING COMPRESSOR ENGAGEMENT RELAY 3 C11 0,5 AB See M010A ENGINE MANAGEMENT ECU (ENGINE) E2 D01 0,5 NZ See K084 SPEEDOMETER SENSOR 2 D02 0,5 V See M010A ENGINE MANAGEMENT ECU (ENGINE) K3 D03 0,5 AG See K036 ENGINE COOLANT TEMPERATURE SENSOR/SENDER UNIT 3 D05 0,5 AR X See M010A ENGINE MANAGEMENT ECU (ENGINE) J4 See B001A JUNCTION UNIT (ENGINE) 21 D06 2,5 CB X See B001A JUNCTION UNIT (ENGINE) 18 See A030 IGNITION COIL 4 See N070A INJECTOR (ENGINE) 2 See N070B INJECTOR (ENGINE) 2 See N070D INJECTOR (ENGINE) 2 See N070C INJECTOR (ENGINE) 2 D08 0,5 BR See M010A ENGINE MANAGEMENT ECU (ENGINE) H2
2.0 16V
Pin Cable Destination Sec. Colour Node Connect. Pin A01 0,5 HR See M010A ENGINE MANAGEMENT ECU (ENGINE) J2 A02 0,5 N X See M010C ENGINE MANAGEMENT ECU (ENGINE) H1 See M010B ENGINE MANAGEMENT ECU (ENGINE) H4 See M010A ENGINE MANAGEMENT ECU (ENGINE) L4 See M010A ENGINE MANAGEMENT ECU (ENGINE) M4 See O007A OIL VAPOUR HEATING RESISTANCE (ENGINE) 2 See C040 ENGINE EARTH See O015 THROTTLE CASING HEATING RESISTANCE 2 B07 0,5 A See K084 SPEEDOMETER SENSOR 3 B08 0,5 AV See M010A ENGINE MANAGEMENT ECU (ENGINE) G2 B11 0,5 BL See M010A ENGINE MANAGEMENT ECU (ENGINE) M3 B12 0,5 GV See K032 ENGINE OIL LEVEL SENSOR 1 C01 0,5 MC See K032 ENGINE OIL LEVEL SENSOR 3 C08 0,5 AN See M010A ENGINE MANAGEMENT ECU (ENGINE) C4 C09 0,5 HV See M010A ENGINE MANAGEMENT ECU (ENGINE) F3 D01 0,5 NZ See K084 SPEEDOMETER SENSOR 2 D02 0,5 V See M010A ENGINE MANAGEMENT ECU (ENGINE) K3 D03 0,5 AG See K036 ENGINE COOLANT TEMPERATURE SENSOR/SENDER UNIT 3 D06 2,5 CB X See B001A JUNCTION UNIT (ENGINE) 18 See A030 IGNITION COIL 4 See N070A INJECTOR (ENGINE) 2 See N070B INJECTOR (ENGINE) 2 See N070D INJECTOR (ENGINE) 2 See N070C INJECTOR (ENGINE) 2 D08 0,5 BR See M010A ENGINE MANAGEMENT ECU (ENGINE) H2
2.0 JTD 8V
2.3 JTD 16V
Pin Cable Destination Sec. Colour Node Connect. Pin A01 0,5 NV See M010A ENGINE MANAGEMENT ECU (ENGINE) 47 A02 0,5 N X See M015A PLUG PREHEATING CONTROL UNIT (ENGINE) 1 See M010A ENGINE MANAGEMENT ECU (ENGINE) 1 See M010A ENGINE MANAGEMENT ECU (ENGINE) 2 See M010A ENGINE MANAGEMENT ECU (ENGINE) 3 See C040B ENGINE EARTH (ENGINE) A03 2,5 R See B001A JUNCTION UNIT (ENGINE) 2 A04 0,5 MZ See M010B ENGINE MANAGEMENT ECU (ENGINE) 82 A05 0,5 NB See M010B ENGINE MANAGEMENT ECU (ENGINE) 83 A07 0,5 BL See M010A ENGINE MANAGEMENT ECU (ENGINE) 14 A08 0,5 HN See M010A ENGINE MANAGEMENT ECU (ENGINE) 54 B01 0,5 SG See M010A ENGINE MANAGEMENT ECU (ENGINE) 55 B02 0,5 RV See M010A ENGINE MANAGEMENT ECU (ENGINE) 57 B03 0,5 GN See M010A ENGINE MANAGEMENT ECU (ENGINE) 56 B04 0,5 NZ See M010A ENGINE MANAGEMENT ECU (ENGINE) 53 B05 0,5 B See M010A ENGINE MANAGEMENT ECU (ENGINE) 9 B06 0,5 V See M010A ENGINE MANAGEMENT ECU (ENGINE) 10 B07 0,5 HV See K084 SPEEDOMETER SENSOR 3 B08 0,5 CA See M010A ENGINE MANAGEMENT ECU (ENGINE) 49 B09 0,5 CL See M010A ENGINE MANAGEMENT ECU (ENGINE) 23 B10 0,5 RN See M010A ENGINE MANAGEMENT ECU (ENGINE) 59 C02 0,5 ZB See M010A ENGINE MANAGEMENT ECU (ENGINE) 79 C03 0,5 MN See M010A ENGINE MANAGEMENT ECU (ENGINE) 80 C04 0,5 BC See M010A ENGINE MANAGEMENT ECU (ENGINE) 81 C05 0,5 MB See M010A ENGINE MANAGEMENT ECU (ENGINE) 76 C06 0,5 AN See M010A ENGINE MANAGEMENT ECU (ENGINE) 77 C07 0,5 HM See M010A ENGINE MANAGEMENT ECU (ENGINE) 78 C08 0,5 NL See M010A ENGINE MANAGEMENT ECU (ENGINE) 21 C09 0,5 LG See M010A ENGINE MANAGEMENT ECU (ENGINE) 11 C10 0,5 BN See M010A ENGINE MANAGEMENT ECU (ENGINE) 60 C11 0,5 AB See M010A ENGINE MANAGEMENT ECU (ENGINE) 51 C12 0,5 BV See M010A ENGINE MANAGEMENT ECU (ENGINE) 52 D01 0,5 ZG See K084 SPEEDOMETER SENSOR 2 D02 0,5 SB See K035 DO NOT USE SENDER UNIT 1 D03 0,5 MV See K035 DO NOT USE SENDER UNIT 2 D05 0,5 GN X See B001A JUNCTION UNIT (ENGINE) 21 See M010A ENGINE MANAGEMENT ECU (ENGINE) 19 D06 0,5 CB See K028 ENGINE OIL PRESSURE SENSOR 1 D07 0,5 HL See M010A ENGINE MANAGEMENT ECU (ENGINE) 61 D08 0,5 BG See M010A ENGINE MANAGEMENT ECU (ENGINE) 48
2.8 JTD 8V
Pin Cable Destination Sec. Colour Node Connect. Pin A01 0,5 NV See M010A ENGINE MANAGEMENT ECU (ENGINE) 47 A02 0,5 N X See M010A ENGINE MANAGEMENT ECU (ENGINE) 1 See M010A ENGINE MANAGEMENT ECU (ENGINE) 2 See M010A ENGINE MANAGEMENT ECU (ENGINE) 3 See C040B ENGINE EARTH (ENGINE) A03 2,5 R See B001A JUNCTION UNIT (ENGINE) 2 A04 0,5 MZ See M010B ENGINE MANAGEMENT ECU (ENGINE) 82 A05 0,5 NB See M010B ENGINE MANAGEMENT ECU (ENGINE) 83 A07 0,5 BL See M010A ENGINE MANAGEMENT ECU (ENGINE) 14 A08 0,5 HN See M010A ENGINE MANAGEMENT ECU (ENGINE) 54 B01 0,5 SG See M010A ENGINE MANAGEMENT ECU (ENGINE) 55 B02 0,5 RV See M010A ENGINE MANAGEMENT ECU (ENGINE) 57 B03 0,5 GN See M010A ENGINE MANAGEMENT ECU (ENGINE) 56 B04 0,5 NZ See M010A ENGINE MANAGEMENT ECU (ENGINE) 53 B05 0,5 B See M010A ENGINE MANAGEMENT ECU (ENGINE) 9 B06 0,5 V See M010A ENGINE MANAGEMENT ECU (ENGINE) 10 B07 0,5 HV See K084 SPEEDOMETER SENSOR 3 B08 0,5 CA See M010A ENGINE MANAGEMENT ECU (ENGINE) 49 B09 0,5 SB See M010A ENGINE MANAGEMENT ECU (ENGINE) 23 B10 0,5 RN See M010A ENGINE MANAGEMENT ECU (ENGINE) 59 B12 0,5 GV See K032 ENGINE OIL LEVEL SENSOR 1 C01 0,5 MC See K032 ENGINE OIL LEVEL SENSOR 2 C02 0,5 ZB See M010A ENGINE MANAGEMENT ECU (ENGINE) 79 C03 0,5 MN See M010A ENGINE MANAGEMENT ECU (ENGINE) 80 C04 0,5 BC See M010A ENGINE MANAGEMENT ECU (ENGINE) 81 C05 0,5 MB See M010A ENGINE MANAGEMENT ECU (ENGINE) 76 C06 0,5 AN See M010A ENGINE MANAGEMENT ECU (ENGINE) 77 C07 0,5 HM See M010A ENGINE MANAGEMENT ECU (ENGINE) 78 C08 0,5 NL See M010A ENGINE MANAGEMENT ECU (ENGINE) 21 C09 0,5 LG See M010A ENGINE MANAGEMENT ECU (ENGINE) 11 C10 0,5 BN See M010A ENGINE MANAGEMENT ECU (ENGINE) 60 C11 0,5 AB See M010A ENGINE MANAGEMENT ECU (ENGINE) 51 C12 0,5 BV See M010A ENGINE MANAGEMENT ECU (ENGINE) 52 D01 0,5 ZG See K084 SPEEDOMETER SENSOR 2 D02 0,5 HB See K035 DO NOT USE SENDER UNIT 1 D03 0,5 MV See K035 DO NOT USE SENDER UNIT 2 D05 0,5 G X See M010A ENGINE MANAGEMENT ECU (ENGINE) 19 See B001A JUNCTION UNIT (ENGINE) 21 D07 0,5 HL See M010A ENGINE MANAGEMENT ECU (ENGINE) 61 D08 0,5 BG See M010A ENGINE MANAGEMENT ECU (ENGINE) 48

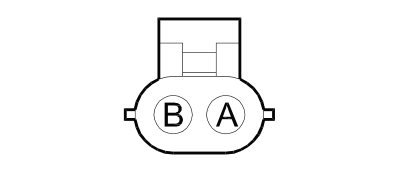

D004B – Front
2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

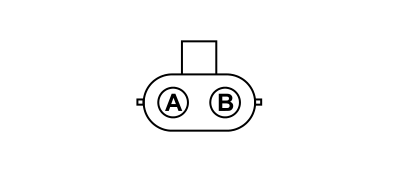

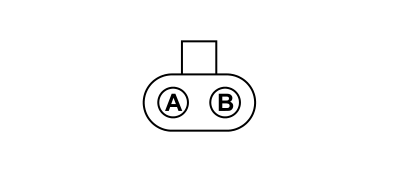

D004B – Engine
2.0 JTD 8V
2.8 JTD 8V · POWER Setup, Thermal starter
2.3 JTD 16V
