I050 inertia switch

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Switches › I050 inertia switch

Connectors and pin-outsI050 inertia switch

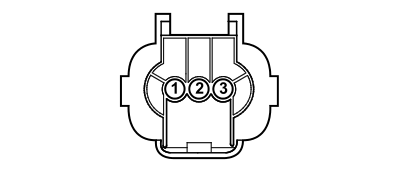

I050 INERTIA SWITCH

2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2	NZ		See C010 LEFT FRONT EARTH	20
2	0,35	LN		See D018A ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT)	B11
3	2	BN		See D145 FRONT/CILC (FUEL LEVEL GAUGE CIRCUIT) COUPLING	3

2.0 16V

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2	CB		See D004A FRONT/ENGINE COUPLING (FRONT)	D05
3	2	BN		See D145 FRONT/CILC (FUEL LEVEL GAUGE CIRCUIT) COUPLING	4
