I031 clutch pedal switch
- Make
- Fiat
- Model
- Ducato Factory Service Manual
- Year
- 2002–2006
- Section
- Switches › I031 clutch pedal switch
Connectors and pin-outsI031 clutch pedal switch

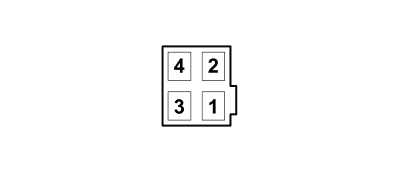

I031 CLUTCH PEDAL SWITCH
| Wiring | Colour |
|---|---|
| See 12 FRONT |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | NZ | See C010 LEFT FRONT EARTH | 23 | |
| 3 | 0,5 | HB | See D004A FRONT/ENGINE COUPLING (FRONT) | D07 | |
