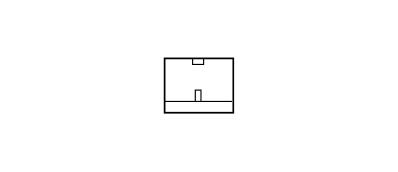

I040 HANDBRAKE SWITCH
I040A – Right longitudinal
| Wiring | Colour |
|---|---|
| See 24 RIGHT LONGITUDINAL | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | SN | See D026 DASHBOARD/RIGHT REAR COUPLING | 7 | |
I040B – Left longitudinal
| Wiring | Colour |
|---|---|
| See 23 LEFT LONGITUDINAL | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | SN | See D025 DASHBOARD/LEFT REAR COUPLING | 7 | |
| Wiring | Colour |
|---|---|
| See 23 LEFT LONGITUDINAL | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | SN | See D025 DASHBOARD/LEFT REAR COUPLING | 7 | |
