D025 dashboard/left rear coupling

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Intermediate couplings › D025 dashboard/left rear coupling

Connectors and pin-outsD025 dashboard/left rear coupling

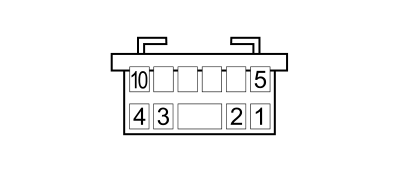

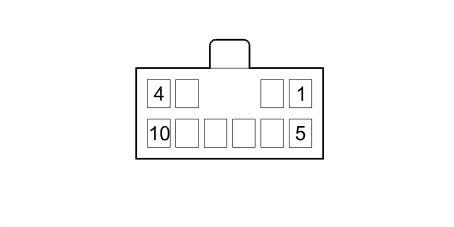

D025 DASHBOARD/LEFT REAR COUPLING

Chassis cab

Wiring	Colour
See 23 LEFT LONGITUDINAL	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	GR	X	See F030 LEFT REAR LIGHT CLUSTER	1
				See F050 LEFT NUMBER PLATE LIGHT	1
3	1	HL		See F030 LEFT REAR LIGHT CLUSTER	4
4	1	RN		See F030 LEFT REAR LIGHT CLUSTER	3
6	1	SB		See F030 LEFT REAR LIGHT CLUSTER	2
7	0,5	SN		See I040B HANDBRAKE SWITCH (LEFT LONGITUDINAL)	1

Combi, Minibus, Panorama, Van

Wiring	Colour
See 23 LEFT LONGITUDINAL	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	GR		See F030 LEFT REAR LIGHT CLUSTER	5
2	0,75	BG		See D152 LEFT REAR/LEFT SWING DOOR COUPLING	2
3	1	HL		See F030 LEFT REAR LIGHT CLUSTER	4
4	1	RN		See F030 LEFT REAR LIGHT CLUSTER	1
5	1,5	BR		See F030 LEFT REAR LIGHT CLUSTER	2
6	1	SB		See F030 LEFT REAR LIGHT CLUSTER	3
7	0,5	SN		See I040B HANDBRAKE SWITCH (LEFT LONGITUDINAL)	1
10	0,5	B		See E048 REVERSE GEAR ENGAGEMENT AUDITORY WARNING	1

All versions

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	GR		See D097A SHORT CIRCUITING COUPLING (DASHBOARD)	3
2	0,75	BG		See D097C SHORT CIRCUITING COUPLING (DASHBOARD)	2
3	1	HN		See H090B SWITCH CONTROL PANEL (DASHBOARD)	1
4	1	RN		See D097B SHORT CIRCUITING COUPLING (DASHBOARD)	2
5	1,5	BR		See D097D SHORT CIRCUITING COUPLING (DASHBOARD)	8
6	1	SB		See H090B SWITCH CONTROL PANEL (DASHBOARD)	19
7	0,35	SN		See E050A INSTRUMENT PANEL (DASHBOARD)	6
10	0,5	B	X	See D026 DASHBOARD/RIGHT REAR COUPLING	10
				See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD)	16
				See D097D SHORT CIRCUITING COUPLING (DASHBOARD)	6
