D026 dashboard/right rear coupling

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Intermediate couplings › D026 dashboard/right rear coupling

Connectors and pin-outsD026 dashboard/right rear coupling

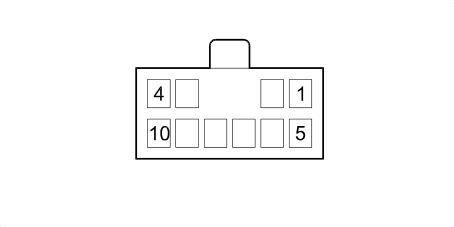

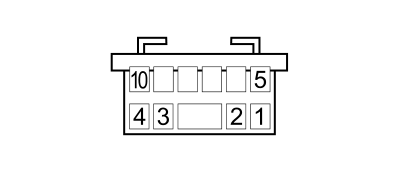

D026 DASHBOARD/RIGHT REAR COUPLING

Combi, Minibus, Panorama, Van

Wiring	Colour
See 24 RIGHT LONGITUDINAL	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	GN		See F031 RIGHT REAR LIGHT CLUSTER	2
2	0,5	LR		See D171A RIGHT REAR/LUGGAGE COMPARTMENT COUPLING (REAR COURTESY LIGHT AND THIRD BRAKE LIGHT BRIDGE)	3
3	1	HL		See F031 RIGHT REAR LIGHT CLUSTER	3
4	1	RN	X	See D171A RIGHT REAR/LUGGAGE COMPARTMENT COUPLING (REAR COURTESY LIGHT AND THIRD BRAKE LIGHT BRIDGE)	1
				See F031 RIGHT REAR LIGHT CLUSTER	6
5	1,5	BR		See F031 RIGHT REAR LIGHT CLUSTER	5
6	1	AN		See F031 RIGHT REAR LIGHT CLUSTER	4
7	0,5	SN		See I040A HANDBRAKE SWITCH (RIGHT LONGITUDINAL)	1
8	0,5	VN		See D171A RIGHT REAR/LUGGAGE COMPARTMENT COUPLING (REAR COURTESY LIGHT AND THIRD BRAKE LIGHT BRIDGE)	5
9	0,5	BN		See I021B SWITCH ON REAR DOOR (RIGHT LONGITUDINAL)	1
10	0,5	B		See M084A PARKING SENSOR CONTROL UNIT (RIGHT LONGITUDINAL)	1

Chassis cab

Wiring	Colour
See 24 RIGHT LONGITUDINAL	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	GN	X	See F051 RIGHT NUMBER PLATE LIGHT	1
				See F031 RIGHT REAR LIGHT CLUSTER	1
4	1	RN		See F031 RIGHT REAR LIGHT CLUSTER	3
5	1,5	HL		See F031 RIGHT REAR LIGHT CLUSTER	4
6	1	AN		See F031 RIGHT REAR LIGHT CLUSTER	2
7	0,5	SN		See I040A HANDBRAKE SWITCH (RIGHT LONGITUDINAL)	1

All versions

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	GN		See D097A SHORT CIRCUITING COUPLING (DASHBOARD)	6
2	0,5	LR		See H090B SWITCH CONTROL PANEL (DASHBOARD)	9
3	1	HL		See H090B SWITCH CONTROL PANEL (DASHBOARD)	2
4	1	RN		See D097B SHORT CIRCUITING COUPLING (DASHBOARD)	3
5	1,5	BR		See D097D SHORT CIRCUITING COUPLING (DASHBOARD)	9
6	1	AN		See H090B SWITCH CONTROL PANEL (DASHBOARD)	15
8	0,5	VN		See H090D SWITCH CONTROL PANEL (DASHBOARD)	13
9	0,5	BN		See H090D SWITCH CONTROL PANEL (DASHBOARD)	10
10	0,5	B	X	See D160A DASHBOARD/OPTIONAL DASHBOARD COUPLING (OPTIONAL DASHBOARD)	16
				See D097D SHORT CIRCUITING COUPLING (DASHBOARD)	6
				See D025 DASHBOARD/LEFT REAR COUPLING	10
