A010 alternator

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Starting - recharging › A010 alternator

Connectors and pin-outsA010 alternator

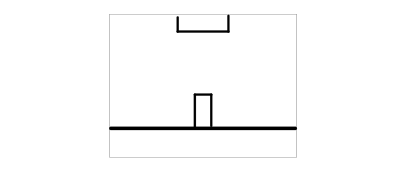

A010 ALTERNATOR

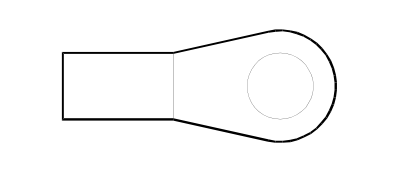

A010A – Recharging

2.8 JTD 8V

Wiring	Colour
See 45 RECHARGING

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
B+	30	R		See B099E MAXI FUSE BOX ON BATTERY (RECHARGING)	1

2.3 JTD 16V

Wiring	Colour
See 45 RECHARGING

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
B+	16	R		See B099E MAXI FUSE BOX ON BATTERY (RECHARGING)	1

2.0 16V, 2.0 JTD 8V

Wiring	Colour
See 45 RECHARGING

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
B+	10	R		See B099E MAXI FUSE BOX ON BATTERY (RECHARGING)	1

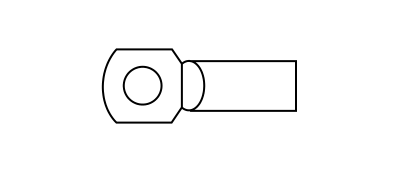

A010B – Engine

2.0 16V · Methane

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	0,5	L		See D004A FRONT/ENGINE COUPLING (FRONT)	B11

2.0 JTD 8V

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	0,5	NZ		See D004A FRONT/ENGINE COUPLING (FRONT)	B11

A010B – Recharging

2.0 16V, 2.3 JTD 16V, 2.8 JTD 8V

Wiring	Colour
See 45 RECHARGING

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
D+	0,5	HM		See D007A ALTERNATOR COUPLING (FRONT)	1
