J131 thermal starter relay

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Relays › J131 thermal starter relay

Connectors and pin-outsJ131 thermal starter relay

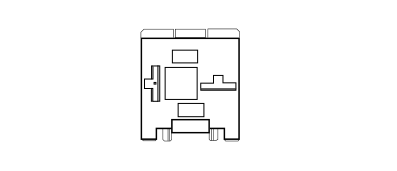

J131 THERMAL STARTER RELAY

2.8 JTD 8V · POWER Setup, Thermal starter

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
30	6	R		See D004B FRONT/ENGINE COUPLING (FRONT)	B
85	0,5	LB		See M010A ENGINE MANAGEMENT ECU (ENGINE)	15
86	0,75	AN	X	See B001A JUNCTION UNIT (ENGINE)	1
				See B001A JUNCTION UNIT (ENGINE)	3
				See B001A JUNCTION UNIT (ENGINE)	6
				See B001A JUNCTION UNIT (ENGINE)	7
				See K084 SPEEDOMETER SENSOR	1
				See O007A OIL VAPOUR HEATING RESISTANCE (ENGINE)	1
				See L005 INJECTION PUMP THIRD PISTON DEACTIVATION SOLENOID VALVE	1
87	6	R		See O004 THERMAL STARTER RESISTANCE	1

2.8 JTD 8V

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
30	6	R		See D004B FRONT/ENGINE COUPLING (FRONT)	B
85	0,5	LB		See M010A ENGINE MANAGEMENT ECU (ENGINE)	15
86	0,75	AN	X	See B001A JUNCTION UNIT (ENGINE)	1
				See B001A JUNCTION UNIT (ENGINE)	3
				See B001A JUNCTION UNIT (ENGINE)	6
				See B001A JUNCTION UNIT (ENGINE)	7
				See K084 SPEEDOMETER SENSOR	1
				See O007A OIL VAPOUR HEATING RESISTANCE (ENGINE)	1
				See L005 INJECTION PUMP THIRD PISTON DEACTIVATION SOLENOID VALVE	1
87	6	R		See O004 THERMAL STARTER RESISTANCE	1
