J028 engine cooling fan relay

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Relays › J028 engine cooling fan relay

Connectors and pin-outsJ028 engine cooling fan relay

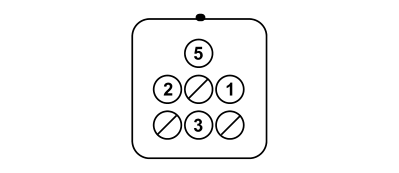

J028 ENGINE COOLING FAN RELAY

2.0 16V · Climate control

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	BN	X	See J028 ENGINE COOLING FAN RELAY	3
				See B001E JUNCTION UNIT (FRONT)	B
2	0,5	G		See D004A FRONT/ENGINE COUPLING (FRONT)	D05
3	2	B	X	See J028 ENGINE COOLING FAN RELAY	1
				See B001E JUNCTION UNIT (FRONT)	B
5	2	RN	X	See B001E JUNCTION UNIT (FRONT)	A
				See N011 FAN MOTOR	A
				See O010B ENGINE FAN ADJUSTMENT RESISTANCE - 1 (FRONT)	1
				See D009A FRONT/RADIATOR COUPLING (FRONT)	A

2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V · Automatic Transmission, Climate control

Wiring	Colour
See 11 RADIATOR

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	BN	X	See D009B FRONT/RADIATOR COUPLING (FRONT)	B
				See J028 ENGINE COOLING FAN RELAY	3
2	0,5	G		See D009B FRONT/RADIATOR COUPLING (FRONT)	1
3	4	B	X	See J028 ENGINE COOLING FAN RELAY	1
				See D009B FRONT/RADIATOR COUPLING (FRONT)	B
5	4	H		See N011 FAN MOTOR	A
