J024 LPG solenoid valve remote control

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Relays › J024 LPG solenoid valve remote control

Connectors and pin-outsJ024 LPG solenoid valve remote control

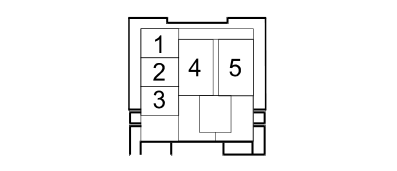

J024 LPG SOLENOID VALVE REMOTE CONTROL

2.0 16V · GPL

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
85	0,75	AN	X	See M018B LGP UNIT (FRONT)	34
				See J145 PGL RETURN SOLENOID VALVE REMOTE CONTROL	85
				See D188 ENGINE/LPG JUNCTION	B1
				See J026 LPG SUPPLY REMOTE CONTROL	85
				See K185 LPG MOTOR DRIVEN PUMPCURRENT SENSOR	4
86	0,75	SN		See M018A LGP UNIT (FRONT)	54
87	2,5	G	X	See L095A LPG DELIVERY SOLENOID VALVE (FRONT)	1
				See K185 LPG MOTOR DRIVEN PUMPCURRENT SENSOR	8
30	2,5	BR	X	See B069 LPG RETURN/DELIVERY SOLENOID VALVE PROTECTION FUSE	1
				See J145 PGL RETURN SOLENOID VALVE REMOTE CONTROL	30
