H037 gear controls

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Manual electric controls › H037 gear controls

Connectors and pin-outsH037 gear controls

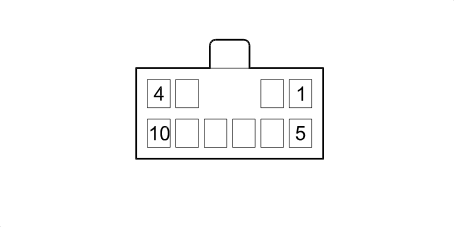

H037 GEAR CONTROLS

2.8 JTD 8V · Automatic Transmission

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	A		See B001C JUNCTION UNIT (FRONT)	8
2	1	RV	X	1	26
				See I081 MULTIFUNCTION SWITCH ON GEARBOX	E
				See B001C JUNCTION UNIT (FRONT)	32
				See L057 Ignition switch electro-magnet	2
				See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	26
3	1	N	X	See I081 MULTIFUNCTION SWITCH ON GEARBOX	K
				See C010 LEFT FRONT EARTH	17
				See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	6
				See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	28
				See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	34
4	0,35	V-T20		See D186C FRONT/ABS COUPLING (ABS)	5
5	0,35	V-T15		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	83
6	0,35	B-T20		See D186C FRONT/ABS COUPLING (ABS)	6
7	0,35	B-T15		See M055 AUTOMATIC TRANSMISSION CONTROL UNIT	82
8	0,5	G		See D001B FRONT/DASHBOARD COUPLING (FRONT)	11
9	0,5	H		See L057 Ignition switch electro-magnet	1
10	0,5	V		See D001B FRONT/DASHBOARD COUPLING (FRONT)	13
