H015 headlamp alignment control
- Make
- Fiat
- Model
- Ducato Factory Service Manual
- Year
- 2002–2006
- Section
- Manual electric controls › H015 headlamp alignment control
Connectors and pin-outsH015 headlamp alignment control

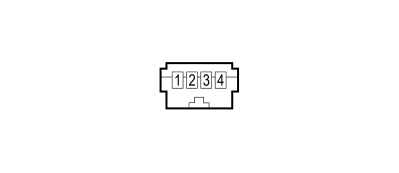

H015 HEADLAMP ALIGNMENT CONTROL
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | VB | See D001A FRONT/DASHBOARD COUPLING (FRONT) | D01 | |
| 2 | 0,5 | HB | See D001A FRONT/DASHBOARD COUPLING (FRONT) | D03 | |
| 3 | 0,5 | N | See D001A FRONT/DASHBOARD COUPLING (FRONT) | D02 | |
